- Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
- Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
- Power transmitters during test using loop supply with simultaneous mA measurement

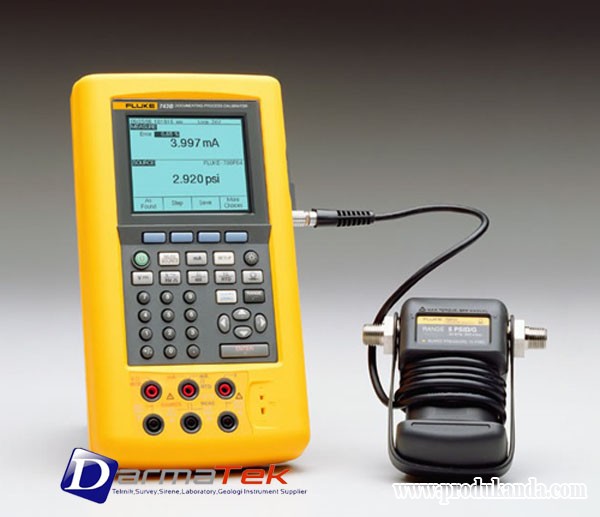

- Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
- Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
- Holds up to a full week of downloaded procedures and calibration results.
- Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
- Easy to use
- Three year warranty
- Bright white dual display. Read both sourced and measured parameters simultaneously.
- Multi lingual interface
- Rechargeable NiMH battery for 10 hour uninterrupted use. Includes gas gauge.
- Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
- Delivered with DPC/Track Sample software.
- Compatible with many Asset Management software packages.
HART Capabilities
The 744 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 275 HART communicator.
- Requires no external box or second tool for everyday HART calibration and maintenance.
- Offers fast HART communication.
- Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator.
- Works with multiple masters, burst mode, and multi-drop configurations.
- Is easy to update as additional instruments are added and new HART versions are released.
- Interrogate to determine device type, manufacturer, model, tag.
- Reconfigure the sensor mapping of dual sensor temperature transmitters.
- Read HART PV function and smart transmitter digital output while measuring analog mA output.
- Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.
- Re-label smart transmitters by reading and writing to the HART tag field.
| Measurement Accuracy | ||
| Voltage DC | 110.000 mV | 0.025% + 0.015%1 |
| 1.10000 V | 0.025% + 0.005%1 | |
| 11.0000 V | 0.025% + 0.005%1 | |
| 110.000 V | 0.05% + 0.005%1 | |
| 300.00 V | 0.05% + 0.005%1 | |
| Voltage AC | 20 to 40 Hz | 2% + 10 |
| 40 to 500 Hz | 0.5% + 5 | |
| 500 to 1 kHz | 2% + 10 | |
| 1 kHz to 5 kHz | 10% + 20 | |
| Ranges | 1.1000, 11.000, 110.00, 300 V | |
| Current DC | 30.000 mA | 0.01% + 0.015%1 |
| 110.00 mA | 0.01% + 0.015%1 | |
| Resistance | 11.000 Ω | 0.05% + 50 mΩ |
| 110.00 Ω | 0.05% + 50 mΩ | |
| 1.1000 kΩ | 0.05% + 500 mΩ | |
| 11.000 kΩ | 0.1% + 10 Ω | |
| Frequency | 1.00 to 109.99 Hz | 0.05 Hz |
| 110.0 to 1099.9 Hz | 0.5 Hz | |
| 1.100 to 10.999 kHz | 5 Hz | |
| 11.00 to 50.00 kHz | 50 Hz | |
| Pressure | Accuracy | from 0.025% of range using any of 29 pressure modules. |
| Modules available for differential, gauge, vacuum, absolute, dual and high pressure. (for detailed specifications refer to pressure modules in options and accessories) |
||
| 1. (% of reading + % of full scale) | ||
| Source Accuracy | ||
| Voltage DC | 110.000 mV | 0.01% + 0.005%1 |
| 1.10000 V | 0.01% + 0.005%1 | |
| 15.0000 V | 0.01% + 0.005%1 | |
| Current DC | 22.000 mA (Source) | 0.01% + 0.015%1 |
| 22.000 mA (Simulate) | 0.02% + 0.03%1 | |
| Resistance | 11.000 Ω | 0.01% + 20 mΩ |
| 110.00 Ω | 0.01% + 40 mΩ | |
| 1.1000 kΩ | 0.02% + 500 mΩ | |
| 11.000 kΩ | 0.03% + 5 Ω | |
| Frequency | 0.00 to 10.99 Hz | 0.01 Hz |
| 11.00 to 109.99 Hz | 0.1 Hz | |
| 110.0 to 1099.9 Hz | 0.1 Hz | |
| 1100 to 21999 Hz | 2 Hz | |
| 22.000 to 50.000 kHz | 5 Hz | |
| 1. (% of reading + % of full scale) | ||
| RTDs and Thermocouples | ||
| Measure accuracy | 10 Ω Cu (427) | 2°C |
| 100 Ω Pt (3916) | 0.3°C | |
| 100 Ω Pt (3926) | 0.3°C | |
| 100 Ω Pt (385) | 0.3°C | |
| 200 Ω Pt (385) | 0.3°C | |
| 500 Ω Pt (385) | 0.3°C | |
| 1000 Ω Pt (385) | 0.3°C | |
| 120 Ω Ni (672) | 0.3°C | |
| For 2-and 3-wire measurement, add 0.4°C | ||
| E | 0.3°C | |
| N | 0.5°C | |
| J | 0.3°C | |
| L | 0.3°C | |
| K | 0.3°C | |
| T | 0.3°C | |
| U | 0.3°C | |
| B | 0.9°C | |
| R | 1.0°C | |
| S | 0.9°C | |
| C | 0.6°C | |
| BP | 1.2°C | |
| XK | 0.4°C | |
| Accuracy with external cold junction, for internal junction add 0.2°C | ||
| Source accuracy | 10 Ω Cu (427) | 1°C |
| 100 Ω Pt (3916) | 0.1°C | |
| 100 Ω Pt (3926) | 0.1°C | |
| 100 Ω Pt (385) | 0.1°C | |
| 200 Ω Pt (385) | 0.1°C | |
| 500 Ω Pt (385) | 0.1°C | |
| 1000 Ω Pt (385) | 0.1°C | |
| 120 Ω Ni (672) | 0.1°C | |
| For 2-and 3-wire simulation, add 0.4°C | ||
| E | 0.2°C | |
| N | 0.3°C | |
| J | 0.2°C | |
| L | 0.2°C | |
| K | 0.3°C | |
| T | 0.3°C | |
| U | 0.3°C | |
| B | 0.8°C | |
| R | 0.9°C | |
| S | 0.9°C | |
| C | 0.6°C | |
| BP | 0.5°C | |
| XK | 0.4°C | |
| Accuracy with external cold junction, for internal junction add 0.2°C | ||
| Technical Data | ||
| Data log functions | Measure functions | Voltage, current, resistance, frequency, temperature, pressure |
| Reading rate | 1, 2, 5, 10, 20, 30, or 60 readings/minute | |
| Maximum record length | 8000 readings (7980 for 30 or 60 readings/minute) | |
| Ramp functions | Source functions | Voltage, current, resistance, frequency, temperature |
| Rate | 4 steps/second | |
| Trip detect | Continuity or voltage (continuity detection not available when sourcing current) | |
| Loop power function | Voltage | Selectable, 24 V or 28 V |
| Accuracy | 5% | |
| Maximum current | 22 mA, short circuit protected | |
| Maximum input voltage | 30 V DC | |
| Step functions | Source functions | Voltage, current, resistance, frequency, temperature |
| Manual Step | Selectable step, change with arrow buttons | |
| Autostep | Fully programmable for function, start delay, stepvalue, time per step, repeat | |
| Environmental Specifications | ||
| Operating temperature | -10°C to +50°C | |
| -20°C to +50°C2 | ||
| Storage temperature | -20°C to +60°C | |
| Dust/water resistance | Meets IP52, IEC 529 | |
| Operating Altitude | 2800 m | |
| 2. Except frequency and AC | ||
| Safety Specifications | ||
| Agency approvals | CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-11993 | |
| Mechanical and General Specifications | ||
| Size | 130 x 236 x 61 mm (5.1 x 9.3 x 2.4 in) | |
| Weight | 1.4 kg (3 lbs, 1 oz) | |
| Batteries | NiMH 7.2V, 3.5 Ah | |
| Battery life | >10 hours typical | |
| Battery replacement | Via snap-shut door without opening calibrator; no tools required | |
| Side port connections | Pressure module connector | |
| RS-232 connector for PC interface cable and for HART communication cable | ||
| Connection for optional battery eliminator | ||
| Data storage capacity | 1 week of calibration results | |
| 90 day specifications | The standard specification interval for the 744 is 1 and 2 years. | |
| Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2. |
||
| Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant. | ||
