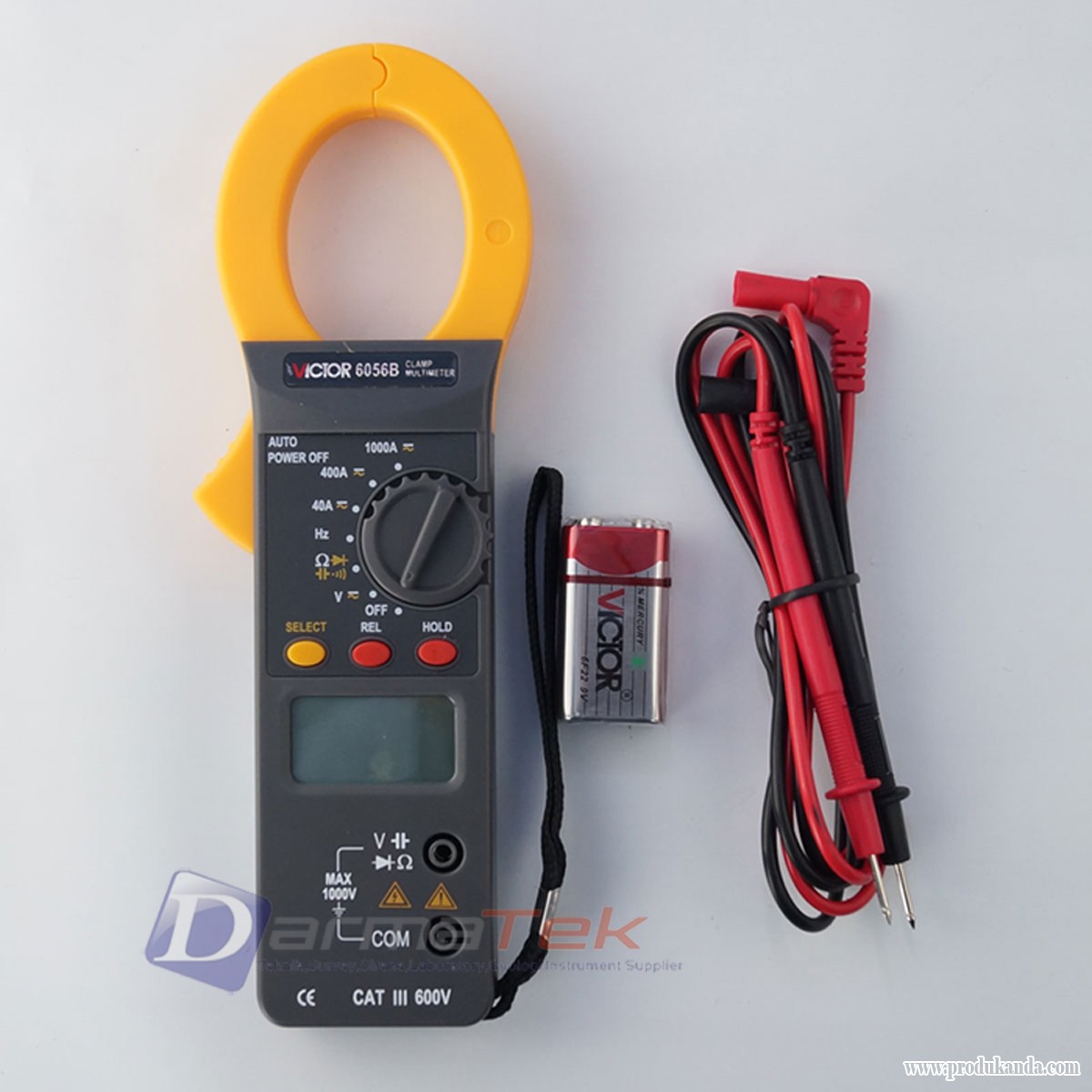

VICTOR 6056B 3 3/ 4 AC/ DC Digital Clamp Meter.

Portable LCD Display Digital Multimeter VICTOR 6056B AC Digital Clamp Meter
Features: VICTOR6056B
- Portable design, can be one-handed operation, easy to use;
- Clamping head with the double protection of insulation, enhanced anti-jamming;
- Non-contact measurement, to improve the measurement safety;
- Structural design stringent and reasonable.

Basic functions Range Basic accuracy
DC voltage 400mV/ 4V/ 40V/ 400V/ 1000V ï ¿ ½ ( 0.5% + 4)
AC voltage 4V/ 40V/ 400V/ 750V ï ¿ ½ ( 0.8% + 10)
AC Current 40A/ 400A/ 1000A ï ¿ ½ ( 2.5% + 8)
DC Current 40A/ 400A/ 1000A ï ¿ ½ ( 2.5% + 8)
Resistance 400ï ¿ ½ / 4kï ¿ ½ / 40kï ¿ ½ / 400kï ¿ ½ / 4Mï ¿ ½ / 40Mï ¿ ½ ï ¿ ½ ( 0.8% + 4)
Capacitor 40nF/ 400nF/ 4uF/ 40uF/ 100uF ï ¿ ½ ( 3.0% + 10)
Frequency 9.999Hz/ 99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz ï ¿ ½ ( 0.5% + 4)

Special features VICTOR 6056B
Diode test
On-Off Alarm
Low Voltage Display
Unit Symbol Display
Keep Data / Peak Hold
Automatic shutdown
Overload
Impedance 10Mï ¿ ½
Sampling frequency 3 time/ s
AC Current Frequency ( 50-60) Hz
Mode of operation Auto Range
Maximum display 3999
Jaw open 38mm
Power 9V

General Characteristics
Colors Case: dark gray; Holseter color: yellow
Weight About 270g( With 9V battery)
Standard Table pens, batteries, manuals, certification, Paper Box
Standard BOX
= = = = = = = = = = = = = = = = = = = = = = = = =
