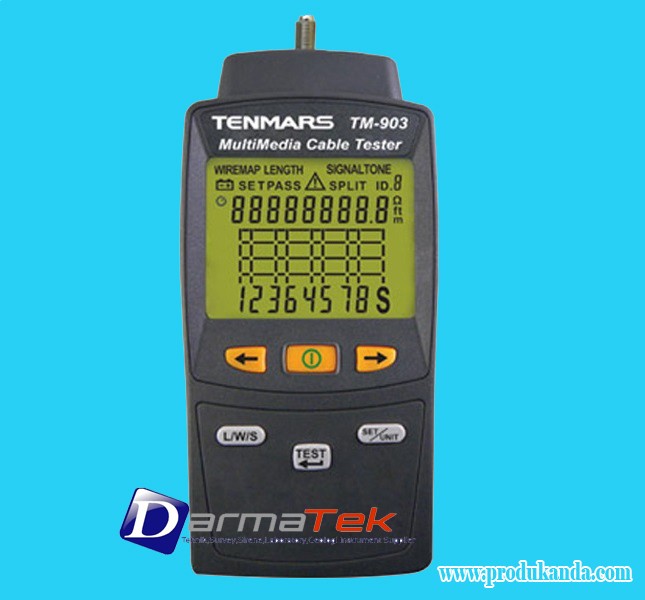

TENMARS TM-903 MULTIMEDIA LAN CABLE TESTER
Application
The TM-903 Multimedia Cable Tester is a hand-held test instrument that lets you verify and troubleshoot the LAN cable of twisted pair.

It displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen.
Using multiple remote ID up to 8 locators to test on RJ-45 ( UTP, STP) LAN cable, video coaxial cable and RJ11 voice cable.

Specification

Model:

TM-903
Connectors type

RJ-45, F-Connector and RJ11
Cable category

LAN cable ( UTP, STP) , video coaxial cable and voice cable.
Wire-map test

Detects opens, shorts, miswires, split pairs
Length test

up to 255 M ( 836 ft)
Length resolution

0.1 m ( ft)
Length units

Meter and Foot
Accuracy

+ / - 10% + 1.0M ( 3 ft)
Power

1.5V battery x 6
Battery life

Approx. continuous testing : 200 times
Operate Maximum Power

20mA
Operating temp. and RH

5 to 40 º C, below 80% RH.
Storage temp. and RH

-10 to 60º C, below 70% .
Dimensions

156( L) x 73( W) x 35( H) mm.
Weight

About 170g
Accessories

User’ s manual x 1, 1.5V AAA battery x 6, Carrying case
Test Cable x3, Remote ID ( 1) x1
Optional Remote ID

Remote ID2 ~ ID7

==================================
