Application:

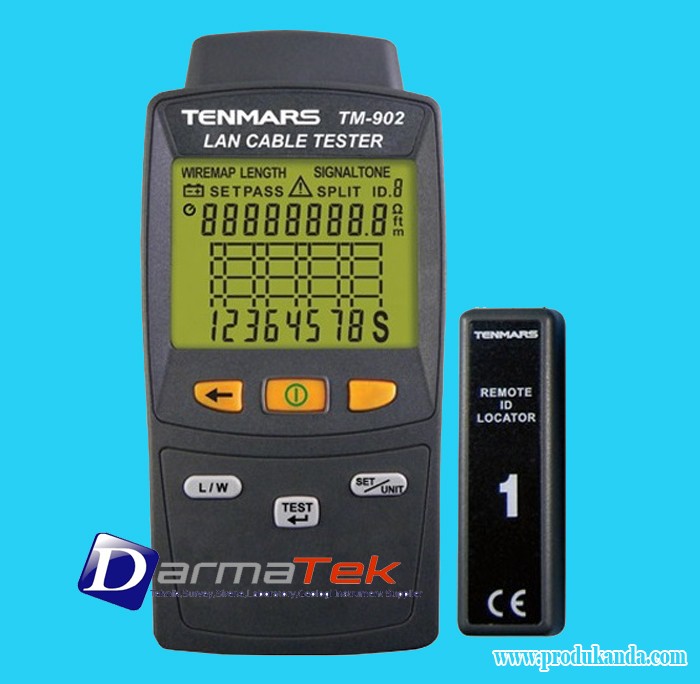

The backlit LCD screen displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen. Using multiple remote ID up to 8 locators to test on RJ-45 ( UTP, STP) LAN cable.
Specification
Model:
TM-901N
TM-902 ( for OEM olny)
Connector type
RJ-45
Cable category
LAN cable ( UTP, STP) , cable.
Wire-map test
Detects opens, shorts, miswires, split pairs
Length test
up to 255 M ( 836 ft)
Length resolution
0.1 m ( ft)
Length units
Meter and Foot
Accuracy
+ / - 10% + 1.0M ( 3 ft)
Operating temp. and RH
5 to 40 º C, below 80% RH.
Storage temp. and RH
-10 to 60º C, below 70% .
Power
9V batteryx1
1.5V battery x 6
Dimensions ( L x W x H)
130 x 56 x 38mm.
156 x 73 x 35mm
Weight
About 160g
About 170g
Accessories
User’ s manual, battery, Carrying case,
Test Cable x1, Remote ID ( 1) x1
==================================
