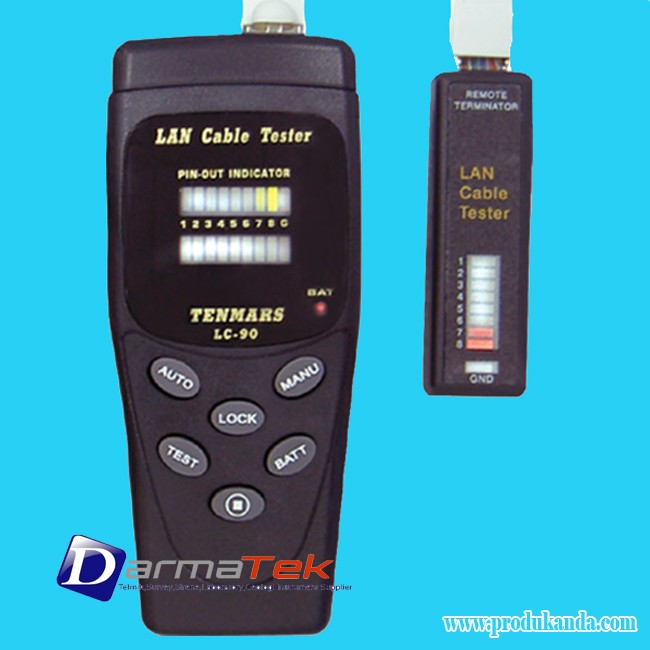

TENMARS LC-90 LAN CABLE TESTER

Application

Test Pin Configuration for 10/ 100 Base-T Cable
10 Base-2 cable, RJ45/ RJ11 modular cables
Verify cable continuity, open, short and miss wired
Auto and Manual Scan
Ground Wire Test

Specification:

Display
LED
Connectors
RJ45 ( 8P8C) input/ output
Power Supply
9 volt 006P battery
Remote Terminators
Sequence Number# 1
Cable Types
Unshielded Twisted Pair ( UTP100, CAT III, IV, V
Foil-screened Twisted Pair ( FTP100 and 120, CAT III, IV, V
Shielded Twisted Pair ( STP150 IBM Type 1 and 6)
Recognize Wiring Schemes
EIA/ TIA-568A/ B, USOC, 10( 100) Base/ HUB, BNC/ 10 Base-2
10( 100) Base-T, Token ring
Dimensions ( instrument)
130mm ( L) x 56mm ( W) x 38mm ( D)
Dimensions ( remote)
72mm ( L) x 23mm ( W) x 24mm ( D)
Weight
250g approx.
Accessories
User' s manual, carrying case, 9 volt battery, and
one patch cable ( RJ-45 to RJ-45)

===================================
