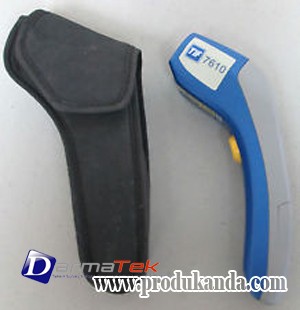

TIF 7610

SoC ( System-on-a-Chip) Technology – Complete IR design incorporated on a single chip, creating compact and lightweight design.
Innovative optical lens – high accuracy measurements over wide temperature ranges. 10: 1 distance to spot ( D: S) ratios available
Laser pointer – Simply point at desired target and press the trigger for temperature reading.
High and low pass filters with audible alarms for out of range measurements
Temperature modes - Maximum ( MAX)
Visual low battery indicators; requires two " AAA" batteries.

S P E C I F I C A T I O N S:

Measurement Range:
-76 to + 932° F ( -60 to + 500° C)
Thermocouple Measurement Range:
NA
Accuracy: Tobj= 59° -95° F ( 15-35° C) Tamb= 77° F ( 25° C) :
± 1.8° F ( 1.0° C)
Accuracy: Tobj= -27-932° F ( -33-500° C) Tamb= 73° F ± 5° F ( 23 ± 3° C) :
± 2% of reading or 4° F ( 2° C) whichever is greater
Thermocouple Accuracy:
NA
Emissivity:
0.95 fixed
Resolution: 14.2° F~ 199.9° F ( -9.9~ 199.9° C) :
0.1° F/ 0.1° C ( 1° below 9.9 and above 199.9)
Spectral Response:
5~ 14ì m
Response Time ( 90% ) :
.5 sec
Distance : Spot:
10 : 1
