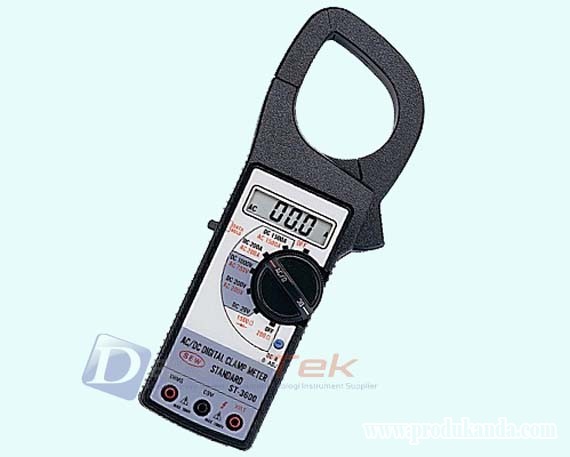

FEATURES :

Ï 3½ digit LCD with maximum reading of 1999.
Ï Over range indication : " 1 " is displayed on highest digit.
Ï Low battery indication: " B " sign appears on the display.
Ï Response time: approx. 1 second.
Ï Data hold: for all ranges

SPECIFICATIONS

AC A : 200 / 1500A
± ( 2.0% rdg+ 4dgt)
( 40Hz-1kHz)
AC V : 200 / 750V
± ( 1.5% rdg+ 2dgt)
( 40Hz-1kHz)
DC A : 200 / 1500A
± ( 2% rdg+ 4dgt)
DC V : 20 / 200 / 1000V
± ( 1% rdg+ 2dgt)
© : 200 / 1500©
± ( 1.5% rdg+ 2dgt)
Diode check : 0-1500mV
± ( 1.5% rdg+ 2dgt)
Conductor size : 55mm Max.
Operating
temperature : 0oC ~ 40oC
Humidity : 85% R.H.
Current
consumption : Approx. 10mA
Dimensions : 245( L) × 70( W) × 41.7( D) mm
Weight
( battery Included) : Approx. 480g
Power source : 9V( 6F22) × 1

===================================
