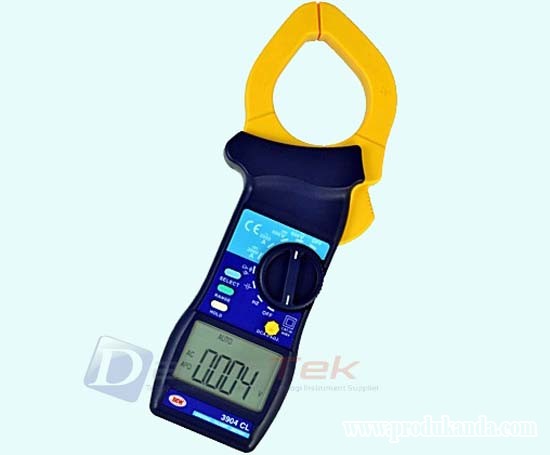

FEATURES
Ï 4000 - count LCD.
Ï Full automatic measurement.
Î Voltage measurement.
Î Current measurement.
Î Resistor measurement.
Î Capacitor measurement
Î Frequency counter.
Ï Range change function.
Ï Data Hold function freezes the reading.
Ï Continuity check.
Ï Diode measurement.
Ï Low battery indication.
Ï Auto Power Off ( APO) function.
Ï Safety design throughout with no exposed metal parts, shielded
banana plugs and recessed input terminals.

SPECIFICATIONS

AC A 400.0/ 2000A ( 40~ 500Hz)
0~ 1500A ± ( 1.5% rdg+ 4dgt)
1500A~ 2000A ± ( 2.5% rdg+ 4dgt)
AC V 400.0mV ± ( 2.0% rdg+ 3dgt)
4.000/ 40.00/ 400.0/ 750V
± ( 1.5% rdg+ 3dgt) 40~ 500Hz
DC A 400.0/ 2000A
0~ 1500A ± ( 1.5% rdg+ 4dgt)
1500A~ 2000A ± ( 2.5% rdg+ 4dgt)
DC V 400.0mV/ 4.000/ 40.00/ 400.0/ 1000V
± ( 1.0% rdg+ 3dgt)
& + Continuity 400.0& / 4.000/ 40.00/ 400.0k& / 4.000M&
± ( 1.5% rdg+ 3dgt)
40.00M& ± ( 2.0% rdg+ 4dgt)
Hz 4.000/ 40.00/ 400.0kHz/ 4.000/ 40.00MHz
± ( 0.5% rdg+ 2dgt)
Capacitor 4.000/ 40.00/ 400.0nF/ 40.00/ 400.0uF/
4.000mF ± ( 3.0% rdg+ 5dgt)
Bargraph
Display 3¾ ( 4000 counts)
Auto-ranges Ç
Data hold Ç
Low battery
indication Ç
Auto power-off Ç
Max/ Min. Mode
Relative mode
Conductor size 55mm Max.
Operating
temperature &
humidity 0º C ~ 40º C at < 80% RH
Dimensions 265( L) × 100( W) × 42( D) mm
Weight
( battery included) Approx. 510g
Power source 9V( 6F22) × 1
Safety standard EN 61010-1 CAT III 600V
EN 61010-2-32
EN 61326-1
