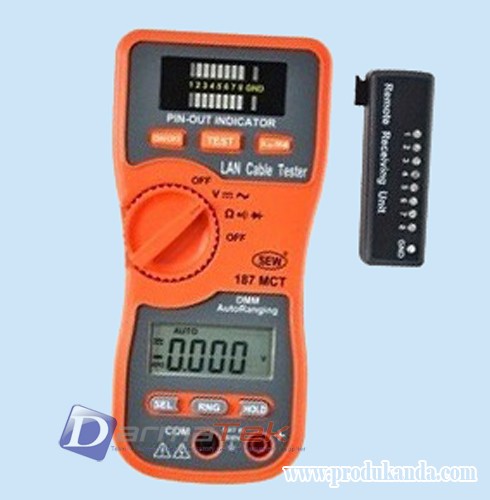

SEW 187 MCT Cable Tracer and Digital Multimeter ( 2 in 1)
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
26-11-2014 09:32
Dapatkan Spesifikasi Harga
SEW 187 MCT Cable Tracer and Digital Multimeter ( 2 in 1) Produk Terbaik dari
DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll
Detail Produk
| FEATURES |
|
Lan Cable Tester
● Designed for RJ45/RJ11 modular cables, 10/100
base-T cable and Token Ring cable etc.
● The LAN cable tester can verify cable continuity,
open, circuit and miss-wired.
● The remote receiving unit is available for installed
cables far away either on the wall plates or on the
patch panels.
● Auto and manual scan function.
● Ground wire test.
● Display : LED indication for wire status.
Digital Multimeter
● 4000 counts LCD.
● Full automatic measurement.
Voltage measurement.
Resistor measurement.
● Range change function.
● select function.
● Data Hold function.
● Continuity check.
● Diode measurement.
● Low battery indication.
● Input impedance:10MΩ.
|
| |
| SPECIFICATIONS |
| |
| AC Voltage |
|
|
|
Range
|
Resolution
|
Accuracy
|
|
400mV
|
0.1mV
|
±(1.0%rdg+5dgt)
|
|
4V
|
1mV
|
|
40V
|
10mV
|
|
400V
|
100mV
|
|
750V
|
1V
|
|
DC Voltage
|
|
|
|
Range
|
Resolution
|
Accuracy
|
|
400mV
|
0.1mV
|
±(0.5%rdg+3dgt)
|
|
4V
|
1mV
|
|
40V
|
10mV
|
|
400V
|
100mV
|
|
1000V
|
1V
|
| Resistance |
|
|
|
Range
|
Resolution
|
Accuracy
|
|
400Ω
|
0.1Ω
|
±(1.2%rdg+3dgt)
|
|
4kΩ
|
1Ω
|
|
40kΩ
|
10Ω
|
|
400kΩ
|
100Ω
|
|
4MΩ
|
1kΩ
|
|
40MΩ
|
10kΩ
|
±(2.0%rdg+4dgt)
|
| Continuity Test |
|
|
|
Range
|
Audible threshold
|
|
400Ω
|
Less than 25Ω
|
| SPECIFICATIONS |
|
|
Operating
temperature
& humidity |
0°C ~ 40°C, 80% Max. |
Storage temperature
& humidity |
-10°C~50°C, 80% Max. |
| Dimensions |
Master unit :
168(L) x 82(W) x 44(D)mm
Remote receiving unit :
74(L) x 30 (W) x 25(D)mm |
Weight
(battery included) |
Master unit :
Approx. 283g
Remote receiving unit :
Approx. 30g |
| Power source |
LAN cable tester : 9V battery x 1
DMM : 1.5V(AAA) x 2 |
| Safety standard |
EN 61010-1 CAT Ⅲ 600V
EN 61326-1 EN 55011
EN 61000-4-2
EN 61000-4-3 |
|
|
|
