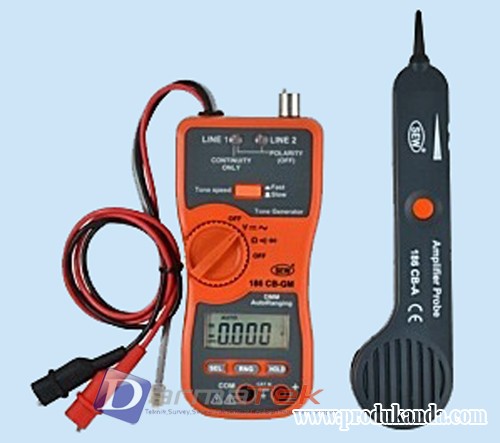

SEW 186CB Cable Tracer and Digital Multimeter ( 2in1)
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
26-11-2014 09:26
Dapatkan Spesifikasi Harga
SEW 186CB Cable Tracer and Digital Multimeter ( 2in1) Produk Terbaik dari
DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll
Detail Produk
| FEATURES |
|
Cable Tracer
● Trace wires or cables.
● Volume control.
● Tip & Ring identification.
● 2 bi-colored LEDs ( Line 1 & Line 2).
● Tone speed selection : Fast & Slow.
● A phone jack is designed for headset or handset.
(Amplifier probe)
Digital Multimeter
● 4000 counts.
● ACV, DCV.
● Ohm, Diode, & Continuity testing.
● Auto-range.
● Data hold.
● Low battery indication.
● select function.
● Auto-off.
|
| |
| SPECIFICATIONS |
| |
| AC Voltage |
|
|
|
Range
|
Resolution
|
Accuracy
|
|
400mV
|
0.1mV
|
±(1.0%rdg+5dgt)
|
|
4V
|
1mV
|
|
40V
|
10mV
|
|
400V
|
100mV
|
|
750V
|
1V
|
| DC Voltage |
|
|
|
Range
|
Resolution
|
Accuracy
|
|
400mV
|
0.1mV
|
±(0.5%rdg+3dgt)
|
|
4V
|
1mV
|
|
40V
|
10mV
|
|
400V
|
100mV
|
|
1000V
|
1V
|
| Resistance |
|
|
| Range |
Resolution |
Accuracy |
|
400Ω
|
0.1Ω
|
±(1.2%rdg+3dgt)
|
|
4kΩ
|
1Ω
|
|
40kΩ
|
10Ω
|
|
400kΩ
|
100Ω
|
|
4MΩ
|
1kΩ
|
|
40MΩ
|
10kΩ
|
±(2.0%rdg+4dgt)
|
| Continuity Test |
|
|
|
Range
|
Audible threshold
|
|
400Ω
|
Less than 25Ω
|
| SPECIFICATIONS |
|
|
| Frequency detection |
Amplifier Probe: 1Hz~12kHz
Tone Generator: 1kHz ±15% |
| Over protection |
Tone Generator: 80V DC |
| Alternating tone |
Fast and Slow |
| Connection |
Tone Generator : RJ11 connector
alligator clip x 2 |
| Sensitivity control |
ˇ |
| Receiver distance |
<50cm |
Operating
temperature
& humidity |
0°C ~ 40°C, 80% Max. |
Temperature
& humidity |
Operating:
0°C~40°C ≤80% R.H.
Storage:
-10°C~50°C ≤80% R.H. |
| Dimensions |
Amplifier Probe:
230(L) x 56(W) x 27(D)mm
Tone Generator/DMM:
183(L) x 82 (W) x 44(D)mm |
Weight
(battery included) |
Amplifier Probe: 125g
Tone Generator/DMM: 305g |
| Power source |
Amplifier Probe: 9V(6F22) × 1
Tone Generator: 9V(6F22) × 1
DMM: 1.5V(AAA) x 2 |
| Safety standard |
EN 61010-1 CAT Ⅲ 600V
EN 61326-1 EN 55011
EN 61000-4-2
EN 61000-4-3 |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
