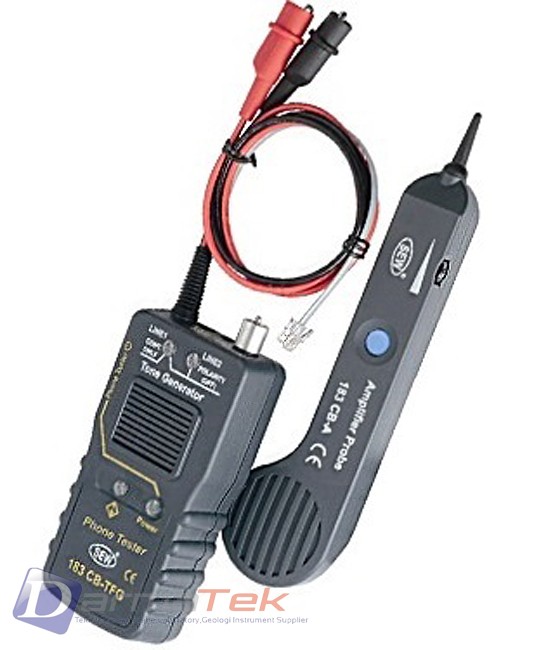

Cable Tracer and Phone Tester

FEATURES:

Cable Tracer

Ï Trace wires or cables.
Ï Volume control.
Ï Tip & Ring identification.
Ï 2 bi-colored LEDs ( Line 1 & Line 2) .
Ï Tone speed selection : Fast & Slow.
Ï A phone jack is designed for headset or handset. ( Amplifier probe)

Phone Tester

Ï Continuity and resistance testing for voltage-free objects.
Ï Check direct and alternating voltages.
Ï Testing capacitors.
Ï Testing diodes.
Ï Power ON/ OFF switch.
Ï The indication of the LED lamp and the sound of the
buzzer can occur at the same time.
Ï The LED indication for Power ON status.

SPECIFICATIONS

Amplifier Probe
Frequency 1Hz~ 12kHz
Receiver distance < 50cm
Sensitivity control Ç
Probe tip Fixed
Power source 9V( 6F22) × 1
Dimensions 270( L) × 50( W) × 25( D) mm
Weight Approx. 125g ( battery included)
Tone Generator
Wave form Square Wave
Frequency 1kHz± 15%
Over voltage
protection 80V DC
Single tone
Alternating tone Fast and Slow
Connection RJ11 connector, alligator clip x 2,
Power source 1.5V ( AA) × 6
Dimensions 143( L) × 74.5( W) × 33.6( D) mm
Weight
( battery included) Approx. 318g
Phone Tester
Loud speaker Ç
Continuity testing Ç
Checking resistance Ç
ACV/ DCV checking Ç
Checking capacitors Ç
Checking diodes Ç
General
Operating temp &
humidity 0Ú ~ 40Ú C, 80% Max.
Storage temp &
humidity -10Ú ~ 50Ú C, 80% Max.
Safety standard EN 61326-1 EN 55011
EN 6100-4-2 EN 6100-4-3

= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
