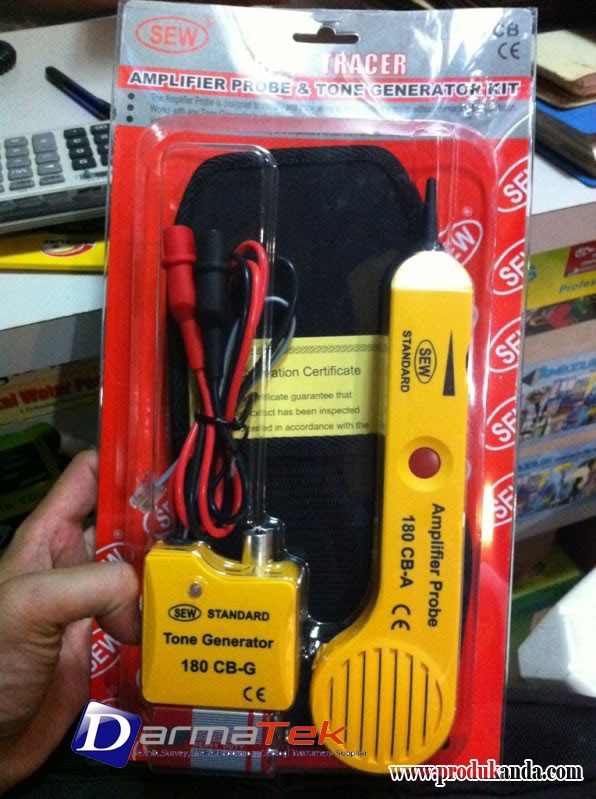

SEW 180 CB
FEATURES:

AMPLIFIER PROBE ( 180 CB-A)
The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation
Works with any Tone Generator to identify wires
Volume control for increased sensitivity and adjustable to suit work enviornment
Recessed ON/ OFF button prevents battery drain
Power supply is from any 9V battery with a life of approximately 100 hours
A plug receptacle is designed for head set or hand set
AMPLIFIER PROBE ( 180 CB-G)
Tone Generator is a great tool for locating and identifying cable pairs or individual conductors
Besides providing tone generator, tone generator serves as a continuity and polarity tester
Test results are displayed by a three-colored led
Meets IEC/ EN 61010-1, IEC/ EN 61019-031, EN61326-1, EN55011, EN61000-4-2, EN61000-4-3

SPECIFICATIONS

TONE GENERATOR
Waveform Square Wave
Frequeny 1.13KHz + / - 15%
Amplitude 9V P-P
Over Voltage Protection 100V DC
Single Tone yes
Alternating Tone yes
AMPLIFIER PROBE
Frequency Detection 1Hz - 12KHz
Receiver Distance 50 - 60 mm
Sensitivity Control yes
Connection RJ11 connector
GENERAL
Operating Temperature & Humidity 0 degree C ~ 40 degree C, 80% Max
Storage Temperature & Humidity -10 degree C ~ 50 degree C, 80% Max
Power Source Amplifier Probe : 9V battery, Tone Generator : 9V battery
Dimensions Amplifer Probe : 270( L) x 50( W) x 25( H) mm, Tone Generator : 62( L) x 58( W) x 34( H) mm
Weight Amplifer Probe : 125g ( battery included) , Tone Generator : 120g ( battery included)
Safety Standard IEC/ EN 61010-1, IEC/ EN 61010-031, EN61326-1, EN55011, EN61000-4-2, EN61000-4-3
Accessories Instruction manual, batteries, carry pouch

= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
