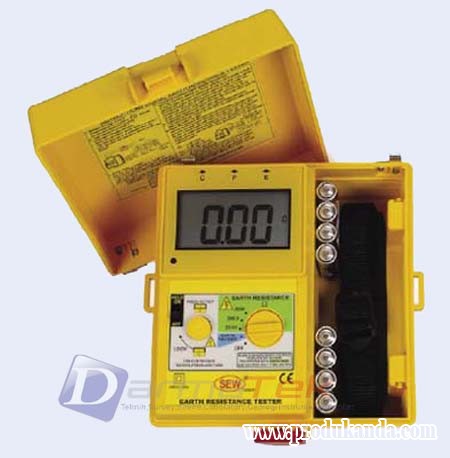

High quality Tau Band movement.

Capable of measuring earth voltage ( Vac) . 2mA measuring current permits earth resistance tests with tripping earth leakage current breakers in the circuit under test. Test leads are supplied as standard accessories for simplified two-wire measuring system. Battery operated. Battery life indication EN/ IEC 61010-1 CAT III 150V.

Calibration performed with supplied test leads. WHY " GROUNDING TEST " IS NECESSARY ? " Grounding " has a few different purposes, such as for safety and for the stability of the electrical circuits. Listed below is more info about it.

1. Power system to the ground: As shown in figure, the purpose is preventing the secondary side from the damage of the primary side. It' s necessary for user' s safety.

2. Equipment to the ground: Connect equipments or shells to the ground. The purpose is protecting the user from the leakage of the equipments.

3. Electrical signal to the ground: Set up a " Zero volt " reference point or a loop path for all different signals. The purpose is for correct action or measuring.

4. Grounding for shielding: Top prevent static electricity. To prevent noise, electromagnetic interference ( put shielding) . Shielding room, cable and communication wires to the ground, equipment' s guard terminals to the ground, power transformers and filters to the ground.

SPECIFICATIONS:

Measuring Ranges
Earth Resistance : 0-10 Ohm/ 0-100 Ohm/ 0-1000 Ohm

Earth Voltage : 0-30V AC ( 40-500Hz)

Accuracy
Earth Resistance : + / - 3% of full scale

Earth Voltage : + / - 2.5% of full scale

Measuring System
Earth resistance by constant current inverter ( Square Signal) 820 Hz approx. 2mA

Open Circuit Indication
LEDunit

Power Source
1.5 V ( AA) x 8

Dimensions
170( L) x 165( W) x 92( D) mm

Weight
Approx. 1000g ( battery included)

Accessories
Test leads ( AL-36 : red-15m, yellow-10m, green-5m)

Auxiliary earth spikes

Simplified measurement probe

Heavy-duty case

Shoulder belt

Instruction manual

batteries
