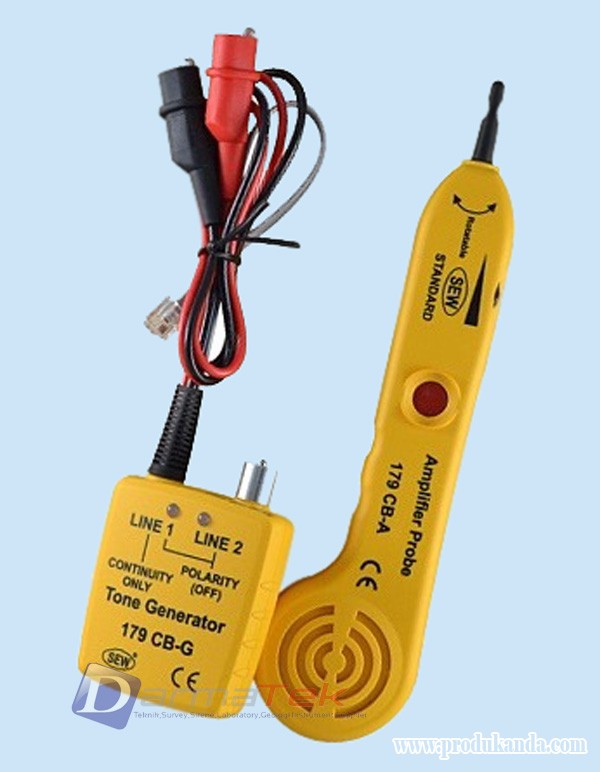

Cable Tracer

FEATURES:

Amplifier Probe

Ï The Amplifier Probe is designed to identify and trace
wires or cables within a group without damaging
the insulation.
Ï Works with any Tone Generator to identify wires.
Ï Volume control for increased sensitivity and adjustable
to suit work environment.
Ï Recessed ON/ OFF button prevents battery drain.
Ï A phone jack is designed for headset or handset.

Tone Generator

Ï Tone Generator is a great tool for locating and
identifying cable pairs or individual conductors.
Ï 181 CB-G does not only serve as a tone generator,
but also serves as a continuity and polarity tester.
Ï A tone selector switch located inside the unit for
selection of the fast tone or the slow tone.
Ï The continuity function is only applied to Line 1.
Ï Two bi-colored LEDs for Line1 and Line2 indication
of the polarities of the telephone lines.
Ï The unit has alligator type terminals, a modular cable
of 4 conductors with a strong connector.

SPECIFICATIONS
Amplifier Probe
Frequency 1Hz~ 12kHz
Receiver distance < 50cm
Sensitivity control Ç
Probe tip Fixed
Power source 9V( 6F22) × 1
Dimensions 270( L) × 50( W) × 25( D) mm
Weight Approx. 125g ( battery included)
Tone Generator
Wave form Square Wave
Frequency 1kHz± 15%
Over voltage
protection 80V DC
Single tone
Alternating tone Fast and Slow
Connection RJ11 connector, alligator clip x 2,
RJ45 connector ( optional)
Power source 9V( 6F22) × 1
Dimensions 86( L) × 63( W) × 26( D) mm
Weight
( battery included) Approx. 130g
General
Operating temp &
humidity 0Ú ~ 40Ú C, 80% Max.
Storage temp &
humidity -10Ú ~ 50Ú C, 80% Max.
Safety standard EN 61326-1 EN 55011
EN 6100-4-2 EN 6100-4-3

= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
