Cable Tester and Cable Tracer
All in One Multi-purpose
FEATURES

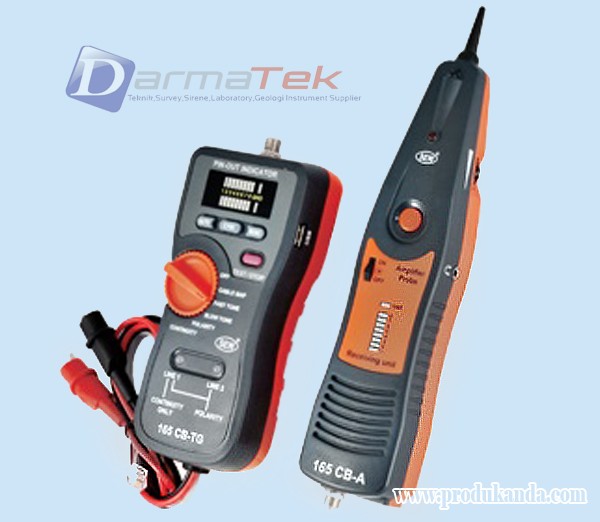

Multi-purpose Cable Tester
Ï 165 CB is an ideal tool which can test the correct pin configuration
for different kinds of cables.
Ï For testing:
-RJ45/ RJ11 -USB
-COAX -BNC cable
-Multi-wire cable
Ï Auto-scan and manual-check function
Ï Buzzer sound warning for wire status
Ï 2 LED module indicators on the master unit which can
do both of transmitter and receiver functions for
RJ45/ RJ11 cable testing. Users don' t need to use the receiving unit.
Ï 165 CB provides a variety for checking cable continuity,
open status, short status and miss-wired.
Ï Ground ( shielded ) wire test.
Ï LED indication for wire status.
Ï Power source : 9V battery
Amplifier Probe
Ï The Amplifier Probe is designed to identify and trance
wires or cables within a group without damaging the insulation.
Ï The flashlight function for easier cable tracing in the dark.
Ï An LED indication for the signal strength.
Ï Volume control for increased sensitivity and adjustable
to suit work environment.
Ï Recessed ON/ OFF button prevents battery drain.
Ï Works with any Tone Generator to identify wires.
Ï Power supply is in any 9V battery with a life of approximately 100 hours.
Ï A phone jack is designed for headset or handset.
Tone Generator
Ï Tone Generator is a great tool for locating and
identifying cable pairs or individual conductors.
Ï Two bi-colored LEDs for Line1 and Line2 indication of
the polarities of the telephone lines.
Ï Identifying Tip and Ring of telephone lines
Ï Identifying telephone line condition : Clear line, Busy
line and Ringing line.
Ï 165 CB does not only serve as a tone generator, but
it also serves as a continuity and polarity tester.
Ï Users can select a fast dual tone or a slow dual tone
by the rotary switch.
Ï The unit has alligator type terminals, a modular cable
of 4 conductors with a strong connector.
Ï The tone and continuity functions are only applied to
Line1. ( modular connector)
SPECIFICATIONS
Master unit & Tone Generator ( 165 CB-TG)
Display LED Modules
Bi-colored LEDs
Wave form Square wave
Frequency 1kHz ± 15%
Over voltage
protection 80V DC
Single tone
Alternating tone Fast and slow
Amplifier Probe & Receiving unit ( 165 CB-A)
Frequency
detection 1Hz~ 12kHz
Receiver distance < 50cm
Sensitivity control Ç
Flashlight Ç
LED for
signal strength Ç
LED module Ç
General
Operating temp &
humidity 0Ú ~ 40Ú C, 80% Max.
Storage temp &
humidity -10Ú ~ 50Ú C, 80% Max.
Power source 165 CB-A : 9V battery x 1
165 CB-TG : 9V battery x 1
Dimensions 165 CB-A :
263( L) x 55( W) x 37.3( D) mm
165 CB-TG :
180( L) x 82( W) x 43.8( D) mm
Weight
( battery included) 165 CB-A : Approx. 210g
165 CB-TG : Approx. 280g
Safety standard EN 61326-1 EN 55011
EN 6100-4-2 EN 6100-4-3
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
