FEATURES

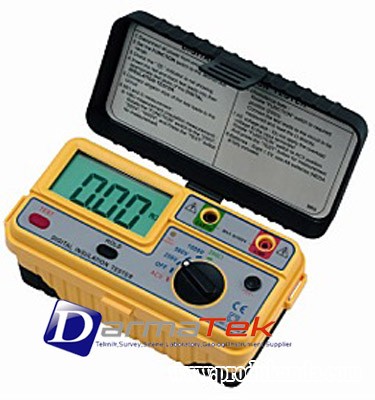

A LCD indicated instrument for Insulation ( M Ohm) , Resistance ( Ohm) and AC Voltage.
Three insulation test voltages ( DC V) : 250V, 500V, 1000V.
3-1/ 2 digital LCD ( 2000 counts) .
68 x 34mm ( 1.338' x 2.677' ) large LCD display.
Automatic curcuit discharge.
Test insulation at rated voltage into a 1mA load.
200mA resistance tests short circuit test current.
AC voltage measurement.
Fuse protectin.
Data hold function.
IEC/ EN 61010-1 CAT III 600V.
BS 16th edition.

SPECIFICATIONS

INSULATION RESISTANCE
Test Voltage ( DC V) 250V/ 500V/ 1000V
Output Voltage Open Circuit + 10%
Measuring Ranges ( Auto) 0-20/ 0-200/ 0-2000M Ohm
Output Current 1mA DC
Accuracy 0-20M Ohm : + / - ( 1.5% rdg+ 5dgt) , 0-200M Ohm : + / - ( 2.5% rdg+ 3dgt) , 0-2000M Ohm : + / - ( 5% rdg+ 5dgt)
AC VOLTAGE
Range 0-600V
Resolution 1V
Line Frequency Range 40-120Hz
Accuracy + / - ( 1.5% rdg+ 3dgt)
RESISTANCE TESTS
Measuring Range 0 - 200 Ohm
Resolution 0.1 Ohm
Shot Circuit Terminal Current 200mA DC min
Open Circuit Terminal Voltage 4V DC min
Accuracy + / - ( 1.5% rdg+ 3dgt)
GENERAL
Impedance 10M Ohm
Power Source 1.5V ( AA) x 8
Dimension 175( L) x 85( W) x 75( H) mm
Weight approx. 600g ( battery included)
Accessories Test leads, fuse ( 05.A 250V) , shoulder belt, carrying case, instruction manual, batteries

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
