Features :
- High accuracy ±0.3°C (Type J T/C – all errors combined)
- Ten (10) common T/C types plus mV
- Accepts both T/C mini-plug and bare T/C wires
- Simple decade control of output
- Three (3) setpoints for each T/C type
- MIN/MAX recall in measure mode
- Input protection to 240 VAC

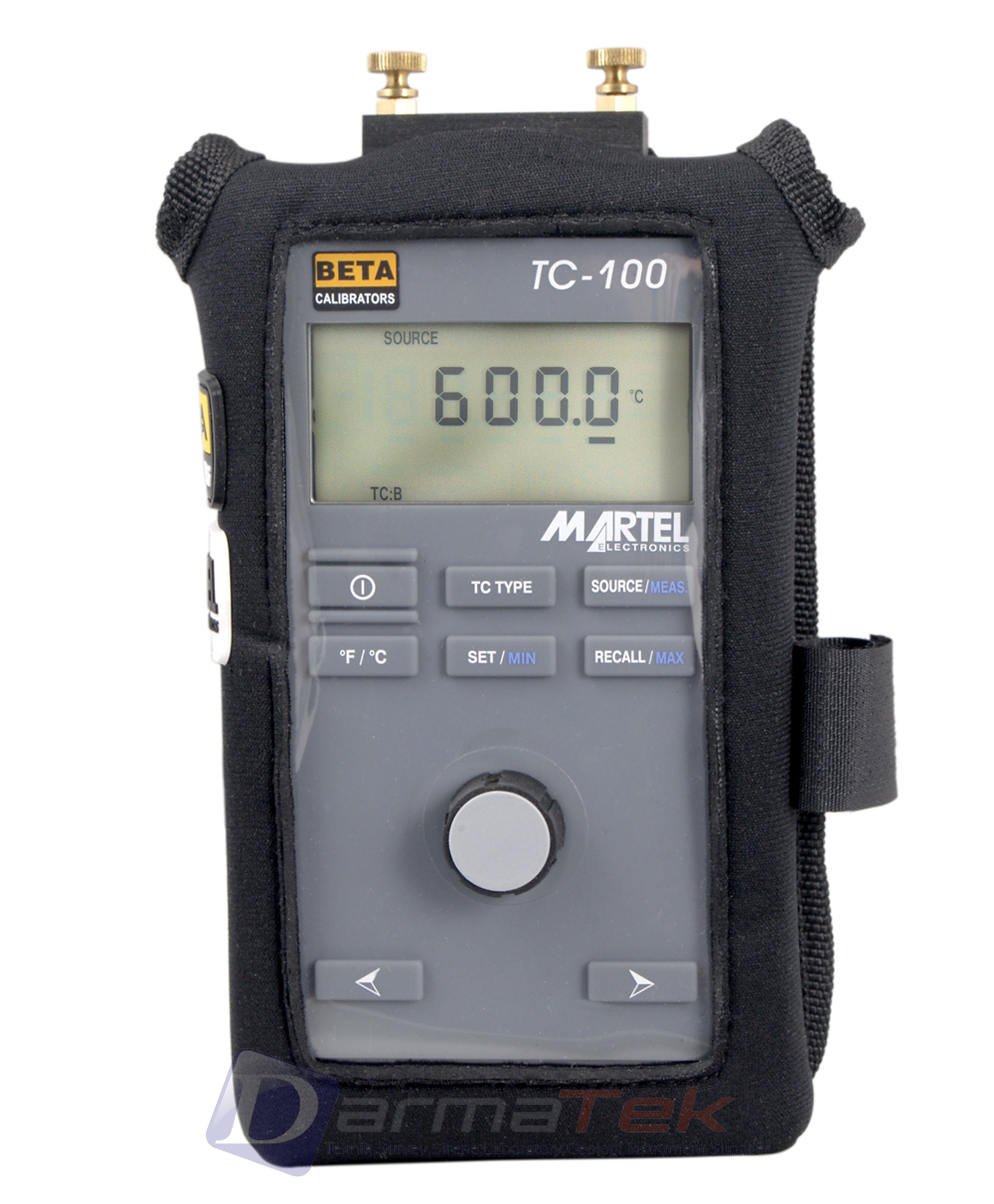

- Supplied as shown with neoprene sleeve case
Specifications (1 year at 23 °C ±5 °C; % of reading unless otherwise noted)
| Input Voltage: Range Resolution Accuracy Input Impedance |
-10 to +75.000 mV 1 uV ±0.007% reading ,±10 uV > 1 MegOhm |
| Output Voltage: Range Resolution Accuracy Output Imedance |
-10 to +75.000 mV 1 uV ±0.007% reading ,±10 uV > 1 MegOhm |
| Thermocouple Source/Measure | |
| Types Range Resolution Source Measure |
J, K, T, E, R, S, B, L, U, C mV ±0.1 °C or °F ±0.01 °C or °F |
| Accuracy | |
| J | ±0.5 °C; -210 °C to -100 °C ±0.3 °C; -100 °C to +1200 °C |
| K | ±0.5 °C; -200 °C to -100 °C ±0.35 °C; -100 °C to +1000 °C ±0.5 °C; +1000 °C to +1372 °C |
| T | ±0.7 °C; -200 °C to -150°C ±0.3 °C; 150 °C to +400°C |
| E | ±0.5 °C; -200 °C to -100°C ±0.3 °C; -100 °C to +1000°C |
| R | ±1.8 °C; 0 °C to 250 °C ±1.0 °C; 250 °C to +1767 °C |
| S | ±1.8 °C; 0 °C to 250 °C ±1.0 °C; 250 °C to +1767 °C |
| B | ±1.7 °C; 600 °C to 1000 °C ±1.2 °C; 1000 °C to 1820 °C |
| L | ±0.5 °C; -200 °C to -100 °C ±0.4 °C; -100 °C to +900 °C |
| U | ±0.7 °C; -200 °C to 0°C ±0.3 °C; 0 °C to +600°C |
| C | ±0.4 °C; 0 °C to 1000 °C ±0.7 °C; 1000 °C to +1800 °C ±1.2 °C; +1,800 |
| CJC Temperature Offset | ±0.05 °C per °C outside of 23 ±5 °C |
| Warm-up Time | 1 minute to specification |
| Environmental Operating Temperature Storage Temperature |
-10 °C to +55 °C -20 °C to 70 °C |
| Power Requirements Battery |
9 VDC 9 V alkaline: NEDA1604 Optional NiCad Optional AC adapter/charger |
| Mechanical Dimensions |
5.7" x 3.2" x 1.4" (H x W x D) 144.7 x 80 x 36.3 mm) |
| Weight | 12 ounces (340 grams) |
