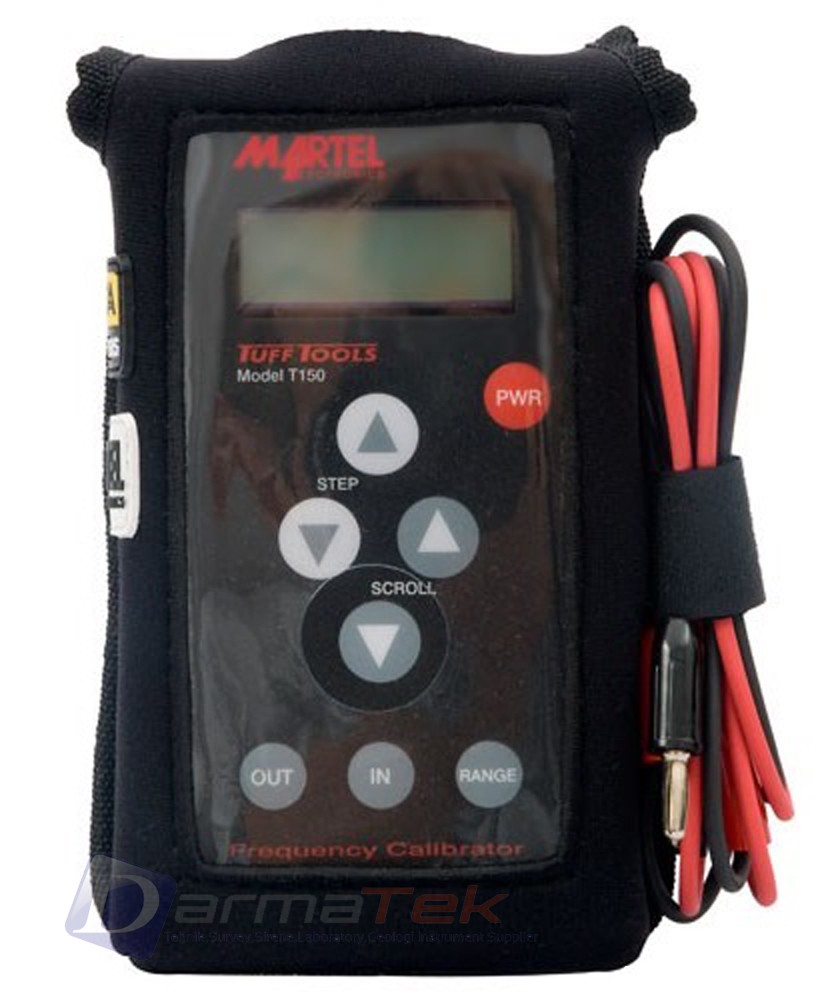

When operated in source mode, the user can quickly step the output in 10% of range increments or make smaller changes using the scroll keys.
Features :
- High Accuracy
- Source and Read Capability
- Rugged, Dust Tight, Water Resistant Case
- Easy to Read Super-Twist LCD
- Intuitive Controls make operation easy even from infrequent users
- Powered by a common 9 volt battery
Specifications (1 year at 23 C 5; % of reading unless otherwise noted)
| Ranges with resolution: | 0-100 kHz, 0-1000.0 Hz, 0-1000.0 CPM |
| Accuracy: | ±0.01% FS ±1 LSD 18 C to 28 C |
| Max Load Driving: | 5 mA (1K Ohm load min) |
| Operating Temperature: | 0 °C to 50 °C |
| Storage Temperature: | -20 °C to 60 °C |
| Temperature Stability: | 0.005% FS/ °C 0 °C to 18 °C and 28 °C to 50 °C |
| Output Signal: | 5 V p-p square wave |
| Input Signal: | 1 V to 100 V p-p |
| Step Size: | 10% of range |
| Scroll Size: | 0.1% of range |
| Weight: | 12 oz. / 340 g |
| Size: | 5.7" x 3.2" x 1.4" (H x W x D) 14.5 cm x 8 cm x 3.6 cm |
