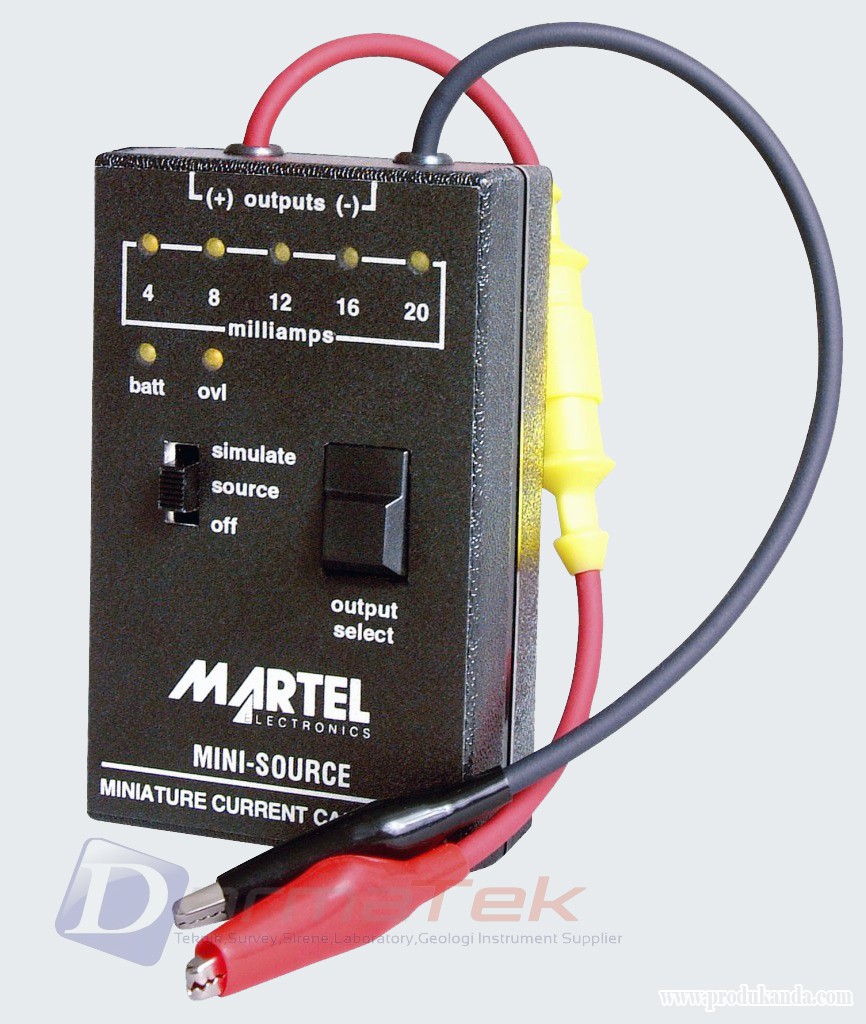

A single pushbutton selects one of five current outputs (4, 8, 12, 16, or 20 mA), which can drive up to 300 Ohms, or can act as a 2-wire simulator with an external loop power supply of up to 30 VDC.
Each unit is provided with a 9V battery, NIST Certificate with Data, and instruction manual.
Features :
- Chart recorder
- Panel meter
- Data acquisiton
- Other process instruments
Specifications
| Output: | Five current steps: 4, 8, 12, 16, and 20 mA |
| Accuracy: | ±0.075% FS |
| Voltage Compliance: Source Simulate |
Internal 9V battery External supply; up to 30V |
| Power Supply: | 9V alkaline battery |
| Battery Life: | 50 hours @ 4 mA output |
| Temperature Range: Operating Storage |
0 °C to +50 °C -25 °C to +60 °C |
| Mechanical Dimensions: Sizes Weight |
3.8" x 2.4" x 1.0" (H x W x D) 6 ounces |
| Output Terminations: | Two (2), 8" leads with alligator clips |
