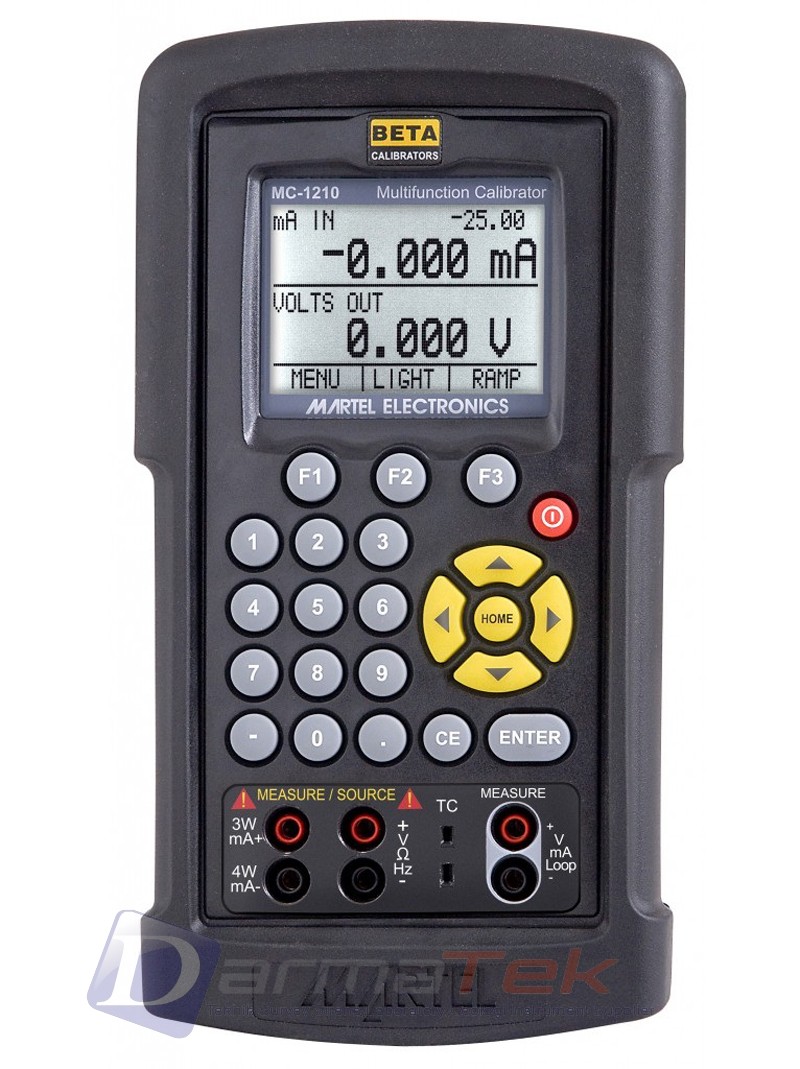

- Dual Display. The upper display is used for the measurement of volts, current, and pressure. The lower display can be used to measure volts, current, pressure, resistance temperature detectors (RTD’s), thermcouples (TC’s), frequency, resistance, and to source pulse trains.
- A thermocouple (TC) input/output terminal with automatic reference-junction temperature compensation
- Setpoint in each range for quickly increasing/decreasing output
- Complete serial interface for remote control
- Isolated read back for transmitter calibrations
- Switchtest capability
- Multifunction
- Dual Display
- Isolated Readback Circuit
- ClearbriteTM Graphic Display
- Auto Stepping
- Auto Ramping
- RS-232 Serial Interface
- NIST Calibration Certificate
- Rubber Boot
- Martel 3-Key User Interface
- Scroll/Step Output
- Numeric Input
- AC Charger/Adapter Option
Specifications (All specifications apply at 23 °C ± 5°C unless otherwise stated. Outside this range add ±0.005% of reading/°C. Accuracy is % of reading ± floor spec.)
General Specifications (10 Series)
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Power | 4 AA Alkaline or optional rechargeable batteries |
| Low Battery Warning | Yes, on display |
| ClearBrite™ Display | High contrast 128 x 64 pixel addressable graphic LCD w backlight 2.4" x 1.8" (63 mm x 44 mm) |
| Serial Communications | Yes, ASCII, RS-232, requires optional 1919069 serial cable or 1919896 USB cable |
| CE-EMC | EN50082-1 and EN55022: 1994 Class B |
| Safety | CSA C22.2 No. 1010-1: 1992 |
| Weight | 1.8 lb (0.82 kg) |
| Size | 8.5" x 4.8" x 2.1" (22 cm x 12 cm x 5.3 cm) |
| Other | IP54 Protected against misconnection to 250 VAC/VDC |
DC Voltage & Current Measure/Source
| Note: | optional 50 mA range available | |||||
|---|---|---|---|---|---|---|
| DC Voltage Upper Isolated Measurement | DC Voltage Lower Non-Isolated Measure | DC Voltage Lower Non-Isolated Source | DC Current Upper Isolated | DC Current Lower Isolated Measurement | DC Current Lower Isolated Source | |
| Range | 0.000V - 30.000V | 0.000V - 20.000V | 0.000V - 20.000V | 0.000 mA - 24.000 mA | 0.000 mA - 24.000 mA | 0.000 mA - 24.000 mA |
| Accuracy | 0.015% ± 2 mV | 0.015% ± 2 mV | 0.015% ± 2 mV | 0.015% ± 2 uA | 0.015% ± 2 uA | 0.015% ± 2 uA |
Frequency Measure/Source
| Frequency Measurement | Frequency Source | Frequency Measurement | Frequency Source | Frequency Measurement | Frequency Source | |
| Range | 2.0 CPM - 600.0 CPM | 2.0 CPM - 600.0 CPM | 1.0 Hz - 1000.0 Hz | 1.0 Hz - 1000.0 Hz | 1.00 kHz - 10.00 kHz | 1.00 kHz - 10.00 kHz |
| Accuracy | 0.05% ± 0.1 CPM | 0.05% | 0.05% ± 0.1 Hz | 0.05% | 0.05% ± 0.01 kHz | 0.05% |
Series Resistance Measure (Autoranging)
| Resistance Ohms Low | Resistance Ohms High | |
| Range | 0.00Ω - 400.00Ω | 401.0Ω - 4000.0Ω |
| Accuracy | 0.025% ± 0.05Ω | 0.025% ± 0.5Ω |
Series Resistance Source (Autoranging)
| Resistance Source | Ohms Source Low Excitation Current 0.1 -0.5 mA |
Ohms Source Low Excitation Current 0.5 - 3 mA |
Ohms Source High Excitation Current 0.05 - 0.8 mA |
Ohms Source High Excitation Current 0.05 - 0.4 mA |
| Range | 5.0Ω - 400.00Ω | 5.0Ω - 400.00Ω | 401.0Ω - 1500Ω | 1500Ω - 4000Ω |
| Accuracy | 0.025% ± 0.1Ω | 0.025% ± 0.05Ω | 0.025% ± 0.5Ω | 0.025% ± 0.5Ω |
RTD Measure/Source
| Accuracy statements are based on 4W connections | ||
|---|---|---|
| RTD Type | Range (°C) | Accuracy (°C) |
| PT385, 10Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 630.0 - 800.0 |
1.3 1.3 1.4 1.5 1.6 1.8 1.9 |
| PT385, 50Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 630.0 - 800.0 |
0.3 0.4 0.4 0.4 0.5 0.5 0.6 |
| PT385, 100Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 630.0 - 800.0 |
0.1 0.2 0.2 0.2 0.3 0.3 0.4 |
| PT3926, 100Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.1 0.2 0.2 0.2 0.3 0.3 |
| PT3916, 100Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 260.0 260.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.1 0.2 0.2 0.2 0.3 0.3 0.3 |
| PT385, 200Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.6 0.7 0.7 0.7 0.7 0.9 0.9 |
| PT385, 500Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.2 0.3 0.3 0.4 0.4 0.4 0.5 |
| PT385, 1000Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.2 0.2 0.2 0.2 0.3 0.3 0.4 |
| NI120 | -80.0 - 260.0 | 0.1 |
| Cu10 | -100.0 - 260.0 | 1.3 |
| Cu50 | -180.0 - 200.0 | 0.3 |
| CU100 | -180.0 - 200.0 | 0.1 |
| YSI400 | 15.0 - 50.0 | 0.1 |
MilliVolts Measure/Source
| Maximum current output in voltage ranges is 1mA with an output impedance of > 1Ω | ||
|---|---|---|
| Millivolts Measure | Millivolts Source | |
| Range | -10.000 mV - 75.000 mV | -10.000 mV - 75.000 mV |
| Accuracy | 0.02% ± 10 uV | 0.02% ± 10 uV |
TC Measure/Source
| TC Type | Range (°C) | Accuracy (°C) with CJC OFF |
Accuracy (°C) with CJC ON |
| J | -210.0 - 0.0 0.0 - 800.0 800.0 -1200.0 |
0.4 0.2 0.3 |
0.6 0.4 0.5 |
| K | -200.0 - 0.0 0.0 - 1000.0 1000.0 - 1372.0 |
0.6 0.3 0.5 |
0.8 0.5 0.7 |
| T | -250.0 - 0.0 0.0 - 400.0 |
0.6 0.2 |
0.8 0.4 |
| E | -250.0 - -100.0 -100.0 - 1000.0 |
0.6 0.2 |
0.8 0.4 |
| R | 0 - 1767 | 1.2 | 1.4 |
| S | 0 - 1767 | 1.2 | 1.4 |
| B | 600 - 800 800 - 1000 1000 - 1820 |
1.2 1.3 1.6 |
1 1.5 1.7 |
| C | 0 - 1000 1000 - 2316 |
0.6 2.3 |
0.8 2.5 |
| XK | -200.0 - 800.0 | 0.2 | 0.4 |
| BP | 0.0 - 800.0 800.0 - 2500.0 |
0.9 2.3 |
1.1 2.5 |
| L | -200.0 - 0.0 0.0 - 900.0 |
0.3 0.2 |
0.5 0.4 |
| U | -200.0 - 0.0 | 0.3 | 0.7 |
| N | 0.0 - 600.0 -200.0 - 0.0 0.0 -1300.0 |
0.3 0.8 0.4 |
0.5 1.0 0.6 |
