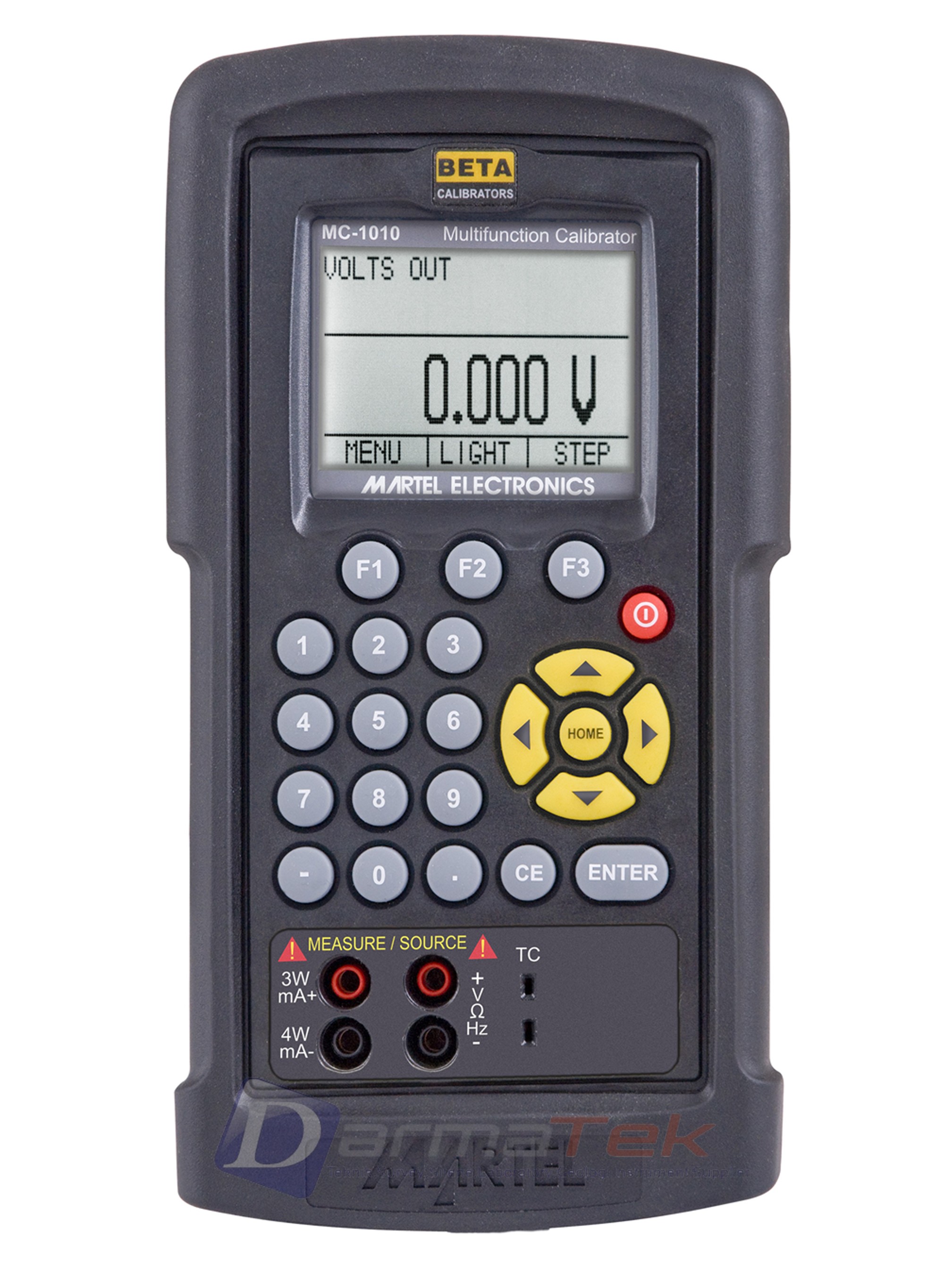

- A graphics display. The display can be used to source and measure volts, current, pressure, resistance temperature detectors (RTDs), thermocouples, frequency, and resistance, and to source pulse trains
- A thermocouple (TC) input/output terminal with automatic reference-junction temperature compensation
- Setpoints in each range for quickly increasing/decreasing output
- An interactive menu
- Complete serial interface for remote control
Specifications (All specifications apply at 23 °C ± 5°C unless otherwise stated. Outside this range add ±0.005% of reading/°C. Accuracy is % of reading ± floor spec.)
General Specifications (10 Series)
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Power | 4 AA Alkaline or optional rechargeable batteries |
| Low Battery Warning | Yes, on display |
| ClearBrite™ Display | High contrast 128 x 64 pixel addressable graphic LCD w backlight 2.4" x 1.8" (63 mm x 44 mm) |
| Serial Communications | Yes, ASCII, RS-232, requires optional 1919069 serial cable or 1919896 USB cable |
| CE-EMC | EN50082-1 and EN55022: 1994 Class B |
| Safety | CSA C22.2 No. 1010-1: 1992 |
| Weight | 1.8 lb (0.82 kg) |
| Size | 8.5" x 4.8" x 2.1" (22 cm x 12 cm x 5.3 cm) |
| Other | IP54 Protected against misconnection to 250 VAC/VDC |
DC Voltage & Current Measure/Source
| Note: optional 50 mA range available | ||||
|---|---|---|---|---|
| DC Voltage Lower Non-Isolated Measure | DC Voltage Lower Non-Isolated Source | DC Current Lower Isolated Measurement | DC Current Lower Isolated Source | |
| Range | 0.000V - 20.000V | 0.000V - 20.000V | 0.000 mA - 24.000 mA | 0.000 mA - 24.000 mA |
| Accuracy | 0.015% ± 2 mV | 0.015% ± 2 mV | 0.015% ± 2 uA | 0.015% ± 2 uA |
Frequency Measure/Source
| Frequency Measurement | Frequency Source | Frequency Measurement | Frequency Source | Frequency Measurement | Frequency Source | |
| Range | 2.0 CPM - 600.0 CPM | 2.0 CPM - 600.0 CPM | 1.0 Hz - 1000.0 Hz | 1.0 Hz - 1000.0 Hz | 1.00 kHz - 10.00 kHz | 1.00 kHz - 10.00 kHz |
| Accuracy | 0.05% ± 0.1 CPM | 0.05% | 0.05% ± 0.1 Hz | 0.05% | 0.05% ± 0.01 kHz | 0.05% |
Series Resistance Measure (Autoranging)
| Resistance Ohms Low | Resistance Ohms High | |
| Range | 0.00Ω - 400.00Ω | 401.0Ω - 4000.0Ω |
| Accuracy | 0.025% ± 0.05Ω | 0.025% ± 0.5Ω |
Series Resistance Source (Autoranging)
| Resistance Source | Ohms Source Low Excitation Current 0.1 -0.5 mA |
Ohms Source Low Excitation Current 0.5 - 3 mA |
Ohms Source High Excitation Current 0.05 - 0.8 mA |
Ohms Source High Excitation Current 0.05 - 0.4 mA |
| Range | 5.0Ω - 400.00Ω | 5.0Ω - 400.00Ω | 401.0Ω - 1500Ω | 1500Ω - 4000Ω |
| Accuracy | 0.025% ± 0.1Ω | 0.025% ± 0.05Ω | 0.025% ± 0.5Ω | 0.025% ± 0.5Ω |
RTD Measure/Source
| Accuracy statements are based on 4W connections | ||
|---|---|---|
| RTD Type | Range (°C) | Accuracy (°C) |
| PT385, 10Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 630.0 - 800.0 |
1.3 1.3 1.4 1.5 1.6 1.8 1.9 |
| PT385, 50Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 630.0 - 800.0 |
0.3 0.4 0.4 0.4 0.5 0.5 0.6 |
| PT385, 100Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 630.0 - 800.0 |
0.1 0.2 0.2 0.2 0.3 0.3 0.4 |
| PT3926, 100Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.1 0.2 0.2 0.2 0.3 0.3 |
| PT3916, 100Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 260.0 260.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.1 0.2 0.2 0.2 0.3 0.3 0.3 |
| PT385, 200Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.6 0.7 0.7 0.7 0.7 0.9 0.9 |
| PT385, 500Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.2 0.3 0.3 0.4 0.4 0.4 0.5 |
| PT385, 1000Ω | -200.0 - -80.0 -80.0 - 0.0 0.0 - 100.0 100.0 - 300.0 300.0 - 400.0 400.0 - 630.0 |
0.2 0.2 0.2 0.2 0.3 0.3 0.4 |
| NI120 | -80.0 - 260.0 | 0.1 |
| Cu10 | -100.0 - 260.0 | 1.3 |
| Cu50 | -180.0 - 200.0 | 0.3 |
| CU100 | -180.0 - 200.0 | 0.1 |
| YSI400 | 15.0 - 50.0 | 0.1 |
MilliVolts Measure/Source
| Maximum current output in voltage ranges is 1mA with an output impedance of > 1Ω | ||
|---|---|---|
| Millivolts Measure | Millivolts Source | |
| Range | -10.000 mV - 75.000 mV | -10.000 mV - 75.000 mV |
| Accuracy | 0.02% ± 10 uV | 0.02% ± 10 uV |
TC Measure/Source
| TC Type | Range (°C) | Accuracy (°C) with CJC OFF |
Accuracy (°C) with CJC ON |
| J | -210.0 - 0.0 0.0 - 800.0 800.0 -1200.0 |
0.4 0.2 0.3 |
0.6 0.4 0.5 |
| K | -200.0 - 0.0 0.0 - 1000.0 1000.0 - 1372.0 |
0.6 0.3 0.5 |
0.8 0.5 0.7 |
| T | -250.0 - 0.0 0.0 - 400.0 |
0.6 0.2 |
0.8 0.4 |
| E | -250.0 - -100.0 -100.0 - 1000.0 |
0.6 0.2 |
0.8 0.4 |
| R | 0 - 1767 | 1.2 | 1.4 |
| S | 0 - 1767 | 1.2 | 1.4 |
| B | 600 - 800 800 - 1000 1000 - 1820 |
1.2 1.3 1.6 |
1 1.5 1.7 |
| C | 0 - 1000 1000 - 2316 |
0.6 2.3 |
0.8 2.5 |
| XK | -200.0 - 800.0 | 0.2 | 0.4 |
| BP | 0.0 - 800.0 800.0 - 2500.0 |
0.9 2.3 |
1.1 2.5 |
| L | -200.0 - 0.0 0.0 - 900.0 |
0.3 0.2 |
0.5 0.4 |
| U | -200.0 - 0.0 | 0.3 | 0.7 |
| N | 0.0 - 600.0 -200.0 - 0.0 0.0 -1300.0 |
0.3 0.8 0.4 |
0.5 1.0 0.6 |
