Simple Data Entry

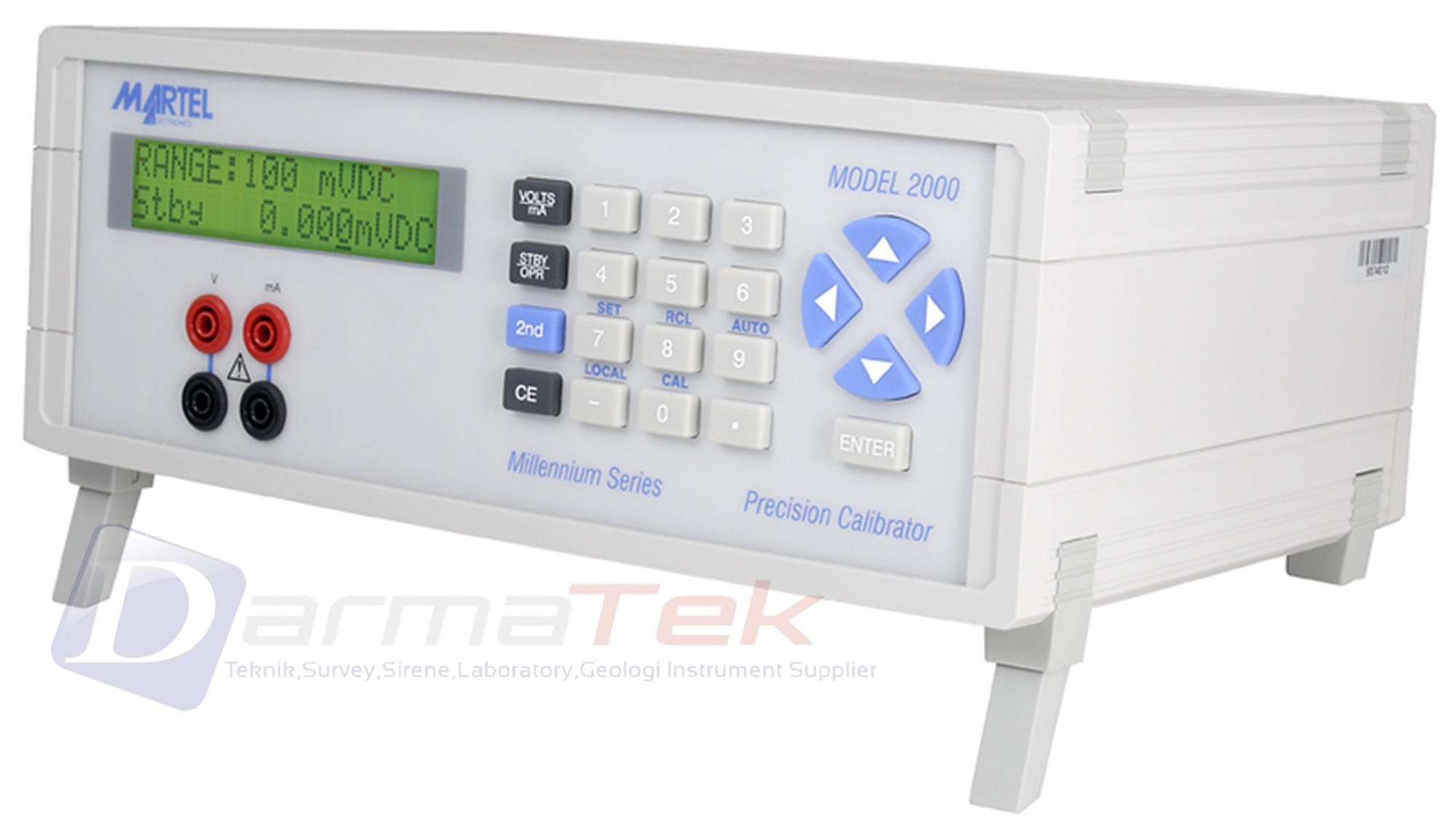

The M2000A provides simple, front-panel control of output voltage or current using either direct keyboard entry or cursor entry.
The M2000A calibrator has an automatic OPERATOR/STANDBY function, which not only protects the device under test and the M2000A form overload conditions, but also provides UL/CSA certified safe operation when ranging to output voltages over 30V.
A second function key provides easy access for up to nine setpoints for each output range that can be recalled individually at the touch of a button, or can be stepped through automatically with control of the setpoint dwell time.
Remote Control
All of the M2000A operating functions can be accessed via RS-232 using a standard PC running Fluke Met/Cal® software, Windows® HyperTerminal, Visual Basic or any other software using an ASCII interface. An IEEE-488 bus interface is also standard.
Rock Solid
The M2000A stability and accuracy is traceable to NIST standards. The accuracy of the M2000A is specified for both 90-day and one year intervals.
| Output Voltage | ||
|---|---|---|
| Range & Resolution | ||
| 0 to 100 mV Range | 1 uV | |
| 0 to 1 V Range | 10 uV | |
| 0 to 10 V Range | 100 uV | |
| 0 to 100 V Range | 1 mV | |
| Accuracy (% of reading) | ||
| 0 to 100 mV Range | ±0.003% (30 ppm) ± 3.0 uV | |
| 0 to 1 V Range | ±0.003% (30 ppm) ± 20.0 uV | |
| 0 to 10 V Range | ±0.003% (30 ppm) ± 200.0 uV | |
| 0 to 100 V Range | ±0.003% (30 ppm) ± 2.0 mV | |
| Maximum Burden 1 Ohm output impedance) | ||
| 0 to 100 mV Range | 10 mA | |
| 0 to 1 V Range | 10 mA | |
| 0 to 10 V Range | 10 mA | |
| 0 to 100 V Range | 1 mA (10mA @ 24 VDC) | |
| Output Current | ||
| Range | 0 to 100.000 mA | |
| Resolution | 1 uA | |
| Accuracy (% of reading) | ± 0.01% ± 2 uA | |
| Maximum Burden | 10V | |
| Stability | ||
| Warm-up Time | 30 minutes to rated accuracy | |
| Temperature Coefficient | Less than 18°C or greater than 28°C | 10% of accuracy spec/°C |
| Temperature Range | ||
| Operating Temperature | 0 °C to +50 °C , 32 °F to 122 °F | |
| Storage | -20 °C to +70 °C (-4 °F to +158 °F) | |
| Power Requirements | ||
| Voltage Range | 90 to 240 VAC (factory set) | |
| Mechanical | ||
| Dimensions | 11.5" x 4.7" x 8.75" (H x W x D) 29.21 cm x 11.83 cm x 22 cm |
|
| Weight | 5 lbs (2.27 kg) | |
| Display | (16) Large characters x 2 lines Alphanumeric, backlit high contrast LCD |
|
