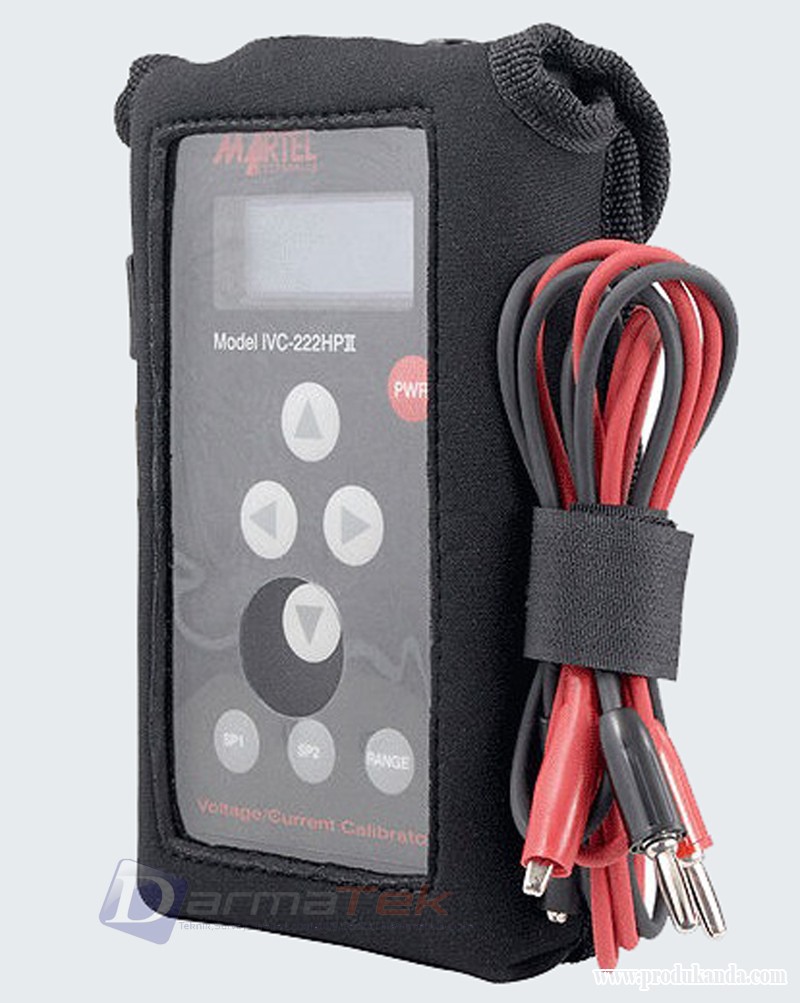

The IVC-222HPII has the capability to store and recall up to two setpoint values, the SP1 and SP2 keys. An RS-232 port accessed via a custom cable (available from Martel) allows the calibrator to be computer controlled for automated testing.
Features :
- Remarkable 0.015% of reading accuracy
- Four ranges: 200 mV, 2 V, 20 V and 24 mA
- Intuitive, easy to use controls
- RS-232 interface allows computer control
- Built-in 24 V supply can drive 4 to 20 mA loops over 1,000 Ohms
- Rugged, lightweight, hand-held unit
- Protective sleeve case with clear viewing/operation window
Specifications
| Output: Voltage Current |
200 mV, 2 V, 20 V 24 mA |
| Resolution: Voltage Current |
0.01 mV, 0.1 mV, 10 mV 0.001 mA |
| Accuracy: | ±0.015% reading, ±2 counts; 18 °C to 28 °C |
| Temperature Stability: | ±0.005% FS °C |
| Load Capability: Voltage Current Capacitive |
1 mA for rated accuracy 1,000 Ohms no limitations (voltage mode only) |
| Output Protection: | Current limited internal RESET |
| Mechanical Dimensions: Sizes Weight |
5.7" x 3.5" x 1.4" (H x W x D) 12 ounces |
| Power Supply: | 9V alkaline or optional NiCd |
