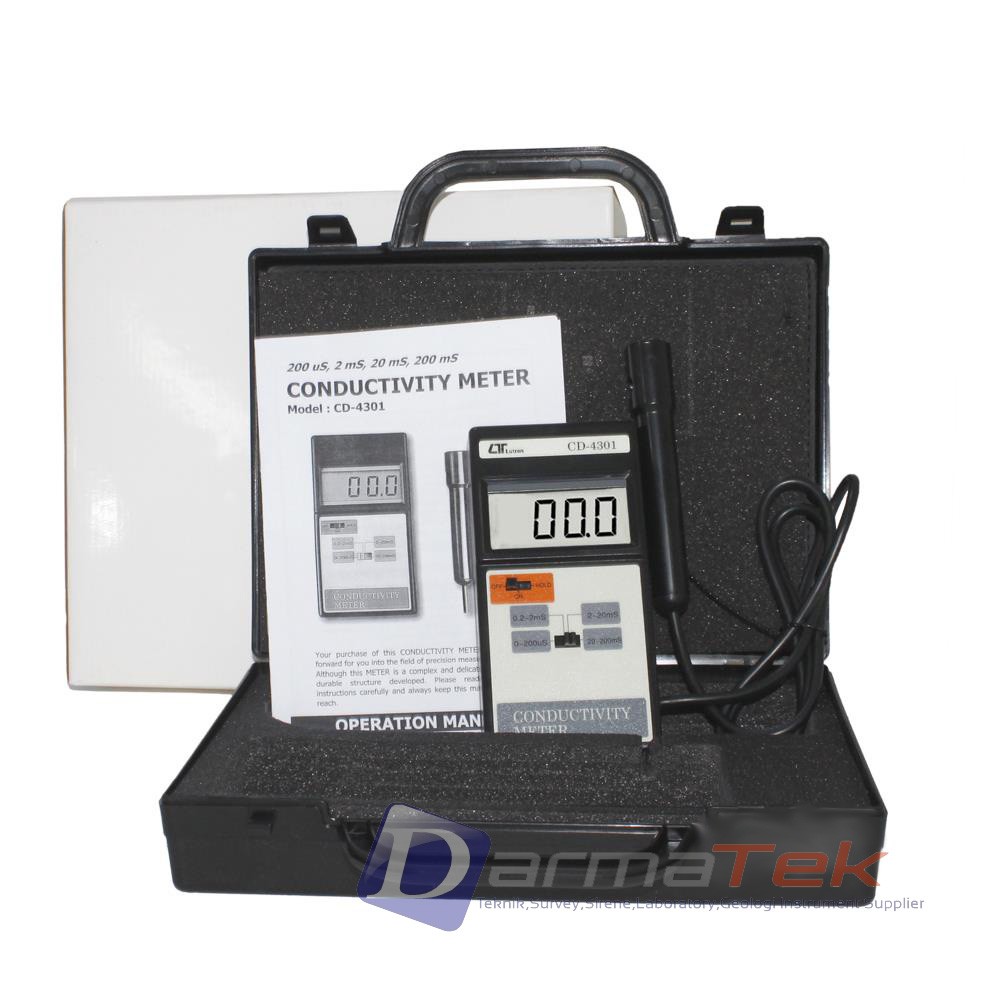

LUTRON CD4301
Spesifications :
Display 18 mm ( 0.7 " ) LCD, 3 1/ 2 digits.,
3 1/ 2 digits, max. display 1999.
Measurement & 199.9 uS, 1.999 mS, 19.99 mS, Data Hold.
Range * Build in 199.9 mS range, it only for reference,
not specify the accuracy.
Resolution 0.1 uS for 199.9 uS range.
0.001 mS for 1.999 mS range.
0.01 mS for 19.99 mS range.
* uS : micro Simens, mS : milli-Simens
Accuracy ± ( 2% F.S. 1 d )
Over Range Display shows ' 1' .
Indicator
Sampling Time Approx. 0.4 second.
Temp. Automatic, 0 to 50 ( 32 to 122 ) .
Compensation
Operating Temp. 0 to 50 ( 32 to 122 ) .
Operating Max. 80% RH.
Humidity
Power Supply 006P DC 9V battery( heavy duty type) .
Power Current Approx. DC 5 mA.
Weight 340 g/ 0.75 LB( w/ battery & electrode) .
Dimension 168 x 80 x 35mm ( 6.6 x 3.2 x 1.2 inch) .
Electrode Size Round, 22 mm Dia. x 120 mm length.
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
