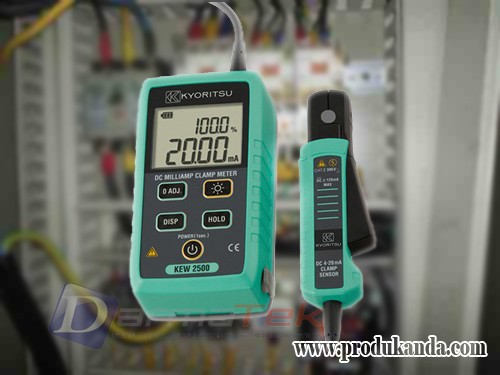

• 0.01mA resolution for DC current
• Top class measurement 0.2% accuracy
• ¦ 6mm clamp jaw easy to use in tight places
• Measurement from 0.01mA to 120.0mA
• Dual display with backlight shows both mA measurement and percent of 4-20 mA span
• Spotlight for illuminating measurement point
• Analog output terminal for recorder connection
• Complies with IEC 61010-1 CAT.II 300V
DC A
20/ 100mA ( Auto ranging)
± 0.2% rdg± 5dgt ( 0.00mA ~ 21.49mA)
± 1.0% rdg± 5dgt ( 21.0mA ~ 120.0mA)
Conductor size Ø 6mm max.
Analog output Recorder: DC 1000mV against DC 100mA
Withstand voltage 2210V AC for 5 seconds
Applicable standards IEC 61010-1, 61010-2-030 CAT.II 300V
IEC 61010-2-032
IEC 61326-1, 61326-2-2
IEC 60529 IP40
Operating temperature & humidity -10 ~ + 50º C < 85%
Storage temperature & humidity -20 ~ + 60º C < 85%
Power source R6/ LR6 ( AA) ( 1.5V) × 4
Dimensions 111( L) × 61( W) × 40( D) mm : Display unit
104( L) × 34( W) × 20( D) mm : Sensor
700mm : Sensor cable
Weight Approx. 290g ( including batteries)
Accessories 9096 ( Carrying case) , LR6 ( AA) × 4,
Instruction Manual, Calibration certificate
Optional 7256 ( Output cord)
================================
