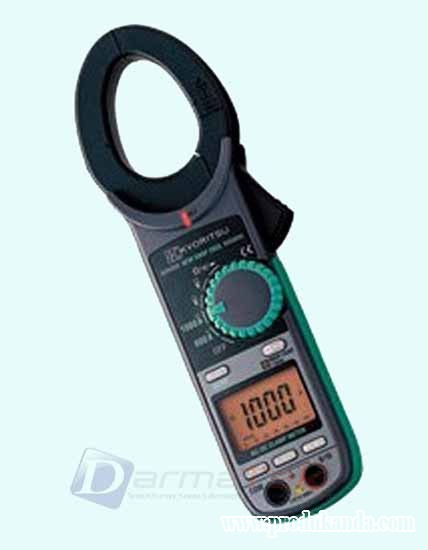

• Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.
• CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
• Thus, very useful for power distribution companies, power utilities and maintenance fields.

AC A 0~ 600.0/ 1000A
| ± 1.5% rdg± 5dgt ( 50/ 60Hz)
| ± 3.0% rdg± 5dgt ( 40~ 400Hz)
DC A 0~ 600.0/ 1000A
| ± 1.5% rdg± 5dgt
AC V 6/ 60/ 600V
Auto Ranging
| ± 1.3% rdg± 4dgt ( 50/ 60Hz)
| ± 3.0% rdg± 5dgt ( 40~ 400Hz)
DC V 600m/ 6/ 60/ 600V
Auto Ranging
| ± 1.0% rdg± 3dgt
© 600/ 6k/ 60k/ 600k/ 6M/ 60M© ( Auto Ranging)
| ± 1% rdg± 5dgt ( 600~ 6M) / ± 5% rdg± 8dgt ( 60M)
Continuity buzzer Buzzer Sounds at 100©
Frequency/ DUTY 10/ 100/ 1k/ 10kHz ( Auto Ranging) / 0.1~ 99.9%
Conductor Size Ø 40mm
Withstand Voltage 6880V AC for 5 seconds
Safety Standard IEC 61010-1 CAT.IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
Power Source R03 ( 1.5V) ( AAA) × 2
Dimensions 254( L) × 82( W) × 36( D) mm
Weight 310g
Accessories 7066A ( Test leads)
9094 ( Carrying case)
Instruction Manual
Optional 8008 ( Multi-Tran)

=================================
