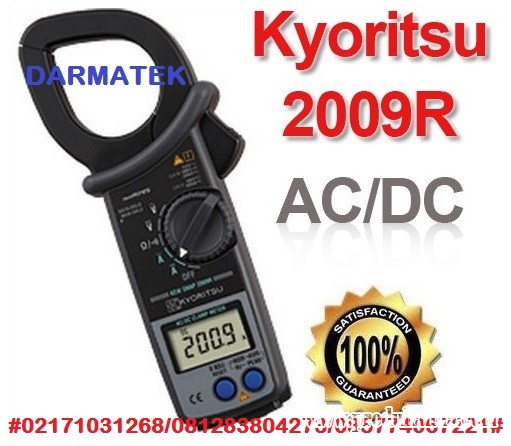

• CAT.IV Clamp Meter can measure the Voltage and Current in both very low and high power circuits.
• Accurate True-RMS reading of AC current or voltage with distorted waveform.
• Can measure AC and DC currents up to 2000A.

AC A
400.0/ 2000A

± 1.3% rdg± 3dgt ( 0~ 400.0A, 150~ 1700A) ( 45~ 66Hz)
± 2.0% rdg± 5dgt ( 0~ 400.0A, 150~ 1700A) ( 20Hz~ 1kHz)
± 2.3% rdg± 3dgt ( 1701~ 2000A) ( 45~ 66Hz)
DC A 400.0/ 2000A± 1.3% rdg± 2dgt
AC V
40.00/ 400.0/ 750V

± 1.0% rdg± 3dgt ( 45~ 66Hz)
± 1.5% rdg± 5dgt ( 20Hz~ 1kHz)
DC V 40.00/ 400.0/ 1000V± 1.0% rdg± 2dgt
© 400.0/ 4000© | ± 1.5% rdg± 2dgt
( Electronic protection ( no fuse) up to 600V)
Continuity buzzer Buzzer sounds below 20©
Hz 10.0 ~ 4000Hz± 1.5% rdg± 5dgt
( Input sensitivityCurrent: more than 40AVoltage: more than 10V)
Output
Recorder : DC400mV against AC/ DC400.0A
DC200mV against AC/ DC2000A
Withstand voltage 6880V AC for 5 seconds
Conductor size Ø 55mm max.
Applicable standards IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1
Power Source R6P ( 1.5V) × 2
Dimensions 250( L) × 105( W) × 49( D) mm
Weight Approx. 540g ( including batteries)
Accessories 7107A ( Test leads) , 8201 ( Output plug) , 9094 ( Carrying case)
R6P ( AA) ( 1.5V) × 2, Instruction Manual
Optional 8008 ( Multi-Tran) ( AC only) , 7014 ( Output cord)

= = = = = = = = = = = = = = = = = = = = = = = = =
