Detail Produk
4102A
Soft Case Model
4102A-H
Hard Case Model
Product Catalogue
•
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
•
Dust and drip proof. (designed to IEC 529 IP54)
•
Earth resistance value can be read directly from the scale.
•
Designed to meet IEC 61010-1 safety standard.
•
Capable of measuring earth voltage.
•
Small and lightweight. Shock resistant new case material.
•
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
•
Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp. Lead wire connection to C and E terminals is good when "OK" lamp is illuminated.

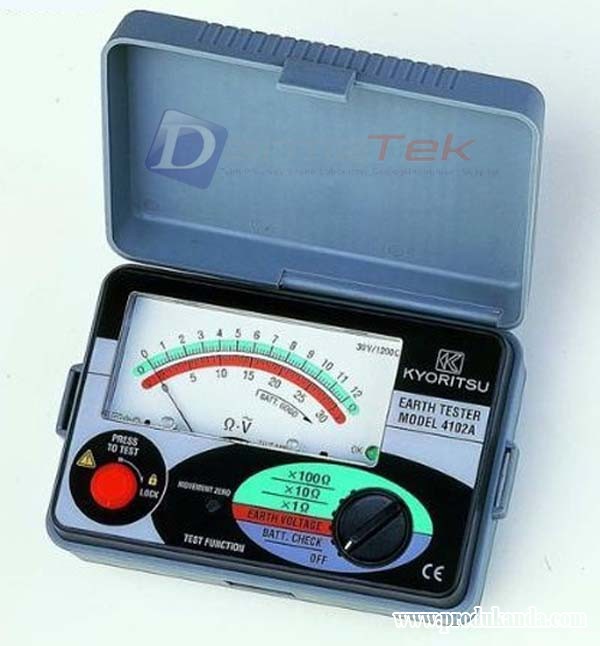

4102A Soft Case Model
4102A-H Hard Case Model
Measurement
Ranges
Earth Resistance: 0~12 Ω/0~120 Ω/0~1200 Ω
Earth Voltage [50,60Hz]: 0~30V AC
Accuracy
Earth Resistance: ±3% of full scale
Earth Voltage: ±3% of full scale
Overload Protection
Earth Resistance: 276V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 276V AC for 1 minute
