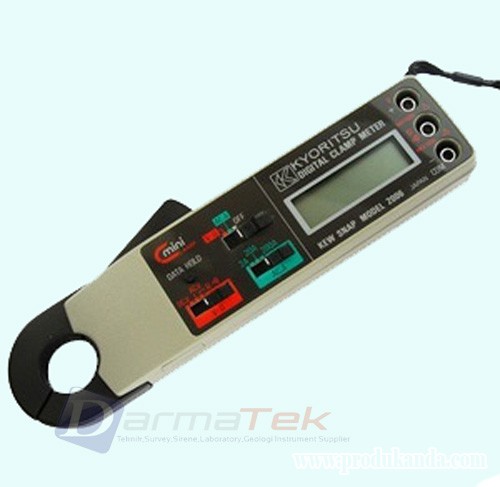

• Smallest clamp meter capable of AC and DC current measurements.
• 20A range has a minimum resolution of 0.01A AC/ DC.
• AC/ DC voltage and resistance measurement functions also available.

AC A 20/ 200A
| ± 1% rdg± 2dgt [ 50/ 60Hz] ( 20A)
| ± 1.5% rdg± 4dgt [ 40Hz~ 1kHz] ( 20A)
| ± 1.5% rdg± 4dgt [ 50/ 60Hz] ( 0~ 150A)
| ± 2% rdg± 5dgt [ 40Hz~ 1kHz] ( 0~ 150A)
| ± 3.5% rdg [ 40Hz~ 1kHz] ( > 150A)
AC V 500V
| ± 1.5% rdg± 2dgt [ 50/ 60Hz]
| ± 2% rdg± 4dgt [ 40Hz~ 1kHz]
DC A 20/ 200A
| ± 1% rdg± 2dgt ( 20A)
| ± 1.5% rdg± 2dgt ( 0~ 150A)
| ± 3% rdg ( > 150A)
DC V 200V ± 1% rdg± 2dgt
© 200© | ± 1.5% rdg± 2dgt
Conductor Size Ø 19mm max.
Frequency Response DC, 40Hz ~ 1kHz
Withstand Voltage 1000V AC for 1 minute
Power Source R6P ( AA) ( 1.5V) × 2
Dimensions 180( L) × 54( W) × 32( D) mm
Weight 170g approx.
Accessories 7066A ( Test leads)
9055 ( Carrying case)
R6P ( AA) × 2
Instruction Manual
Optional 8008 ( Multi-Tran) ( AC only)

= = = = = = = = = = = = = = = = = = = = = = = = =
