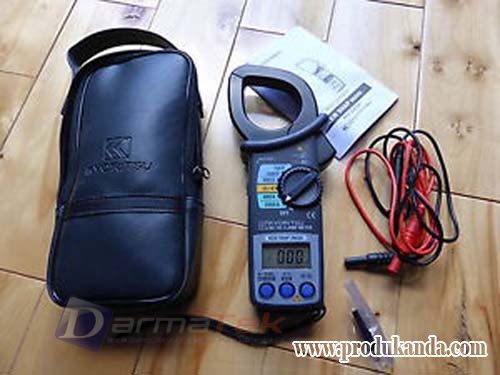

• Equipped to measure both AC and DC current with transformer jaws of large diameter.
• Can measure AC and DC currents up to 2000A.
• Output terminal for connection to recorders.
• AC/ DC voltage, resistance measurement and continuity functions also available.

DC A 400/ 2000A ± 1.5% rdg± 2dgt
DC V 400/ 1000V ± 1% rdg± 2dgt
© 400/ 4000© | ± 1.5% rdg± 2dgt
Output Voltage 400/ 2000A DC400mV/ 200mV
Safety Standard IEC 61010-1 CAT.IV 600V CAT.III 1000V
IEC 61010-031
IEC 61010-2-032
Frequency Response 40Hz~ 1kHz
Withstand Voltage 6880V AC for 5 seconds
Power Source R6P ( AA) ( 1.5V) × 2
Dimensions 250( L) × 105( W) × 49( D) mm
Weight 530g approx
Accessories 7107 ( Test Leads)
8201 ( Output Plug)
9094 ( Carrying Case)

================================
