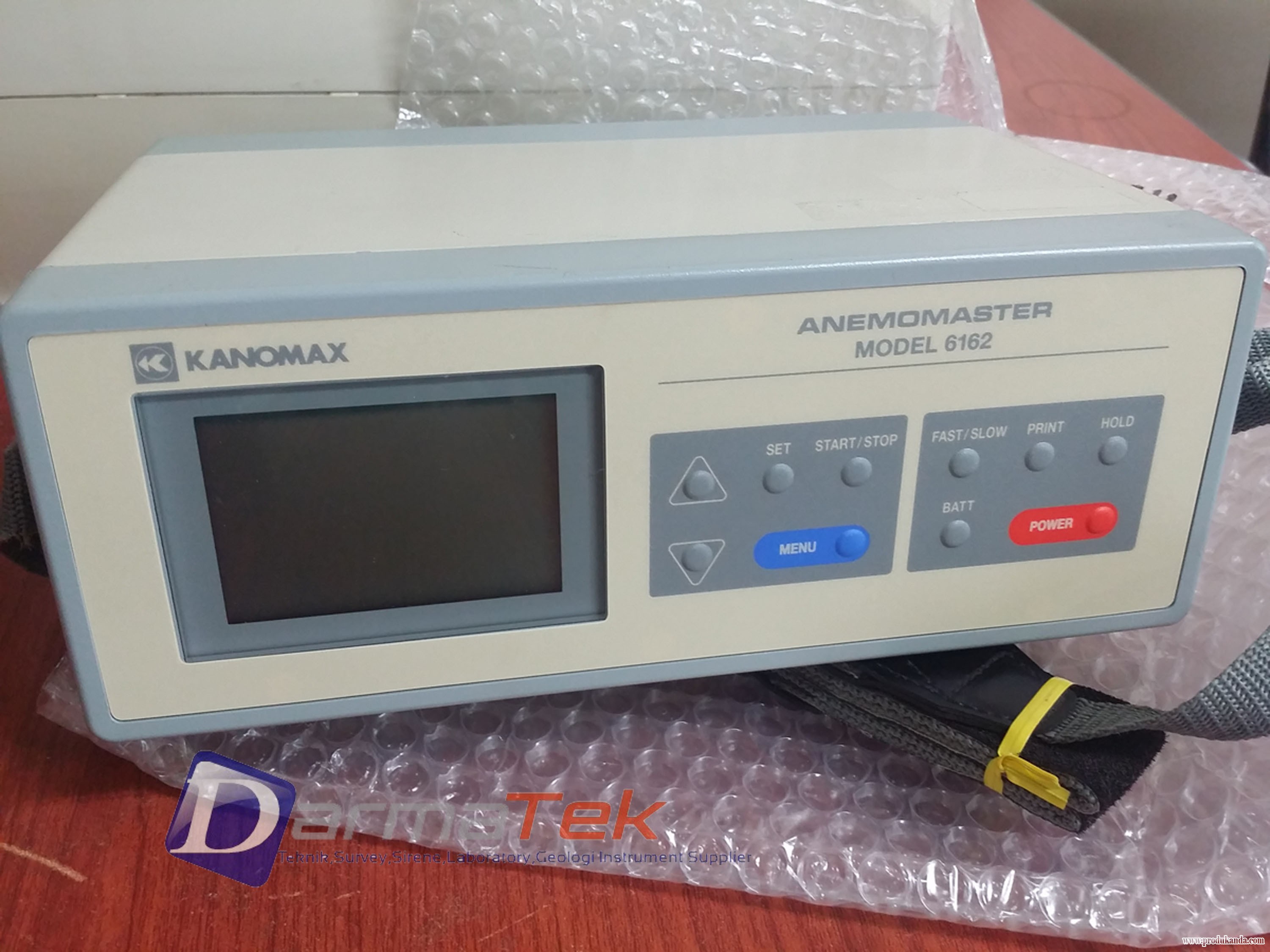

The Kanomax 6162 Anemomaster is a middle and high temperature anemometer that simultaneously displays air velocity and temperature. Probe Model 0203 measures the middle temperature range up to 392º Farhenheit ( 200º Celsius) . Probe Model 0204 measures the high temperature range up to 932º Fahrenheit ( 500º Celsius) . The 0205 probe covers the same temperature range as the 0204 probe but with shorter probe length.
The 6162 must be ordered with at least one probe. Only one probe can be used at one time.

Note: The 0204 and 0205 probes can measure air temperature to 500º C but only air velocity to 400º C.

Simultaneous display of air velocity and temperature
Improved response time by the addition of secondary temperature compensation circuit
Easy review of time history by graphic display
Memory function of maximum 999 separate measurement data
Built-in RS-232 C serial interface for connection to PC. Analog output and remote control terminal also equipped
Probe Compatibility feature allows you to change the probe easily
Complete with shoulder strap, AC adapter, 2 pc. analog output cable, and 6 pc. C cell batteries

Specifications
Model
Probe Model 0203
for middle temperature
Probe Model 0204 / 0205
for high temperature
Air Velocity
32 - 212º F
( 0 – 100º C)
40 – 9840fpm ( 0.2 – 50m/ s)
212 - 392º F
( 100 – 200º C)
80 – 9840fpm ( 0.4 – 50m/ s)
392 - 572º F
( 200 – 300º C) n/ a
138 – 9840fpm ( 0.5 – 50m/ s)
572 - 752º F
( 300 – 400º C)
n/ a
197 – 9840fpm ( 1.0 – 50m/ s)
Air Temperature
Range
32 - 392º F ( 0 – 200º C)
32 - 932º F ( 0 – 500º C)
Accuracy Air Velocity + / - 3%
Air Temperature + / - 1% of reading + 1º C
Pressure ( Option) Range -5.00 to + 5.00 kPa
Outputs Digital RS-232C
Printer Printing calculation results and measurements.
Analog DC 0 to 1 V
Input
Remote
Start / Stop function
Power Supply 6 × 1.5 V C cells / AC Adapter ( 100 to 240 V)
Operating Environment Main Body
41 - 104 º F ( 5 – 40 º C)
Weight Main Unit 4.0 lbs. ( 1.8 kg)
Probe 0.4 lbs. ( 0.2 kg) 1.1 lbs. ( 0.5 kg)
Dimensions Main Unit
8.7” x 5.9” x 3.3” ( 220 x 150 x 85mm)
Probe
Diameter: 0.43 " ( 11mm)
Length: 8.2 " ( 208mm)
0204
Diameter: 0.43 " ( 11mm)
Length: 39.4 " ( 1000mm)
0205
Diameter: 0.43 " ( 11mm)
Length: 19.7 " ( 500mm)
Extension Rod ( Option)
Length: 31.5 " ( 800mm) Length: 81.5 " ( 2070mm)
* Not compatible for 0205
Standard Kit
Operation manual, AC adapter, Analog output cable,
Shoulder strap, Batteries
Optional Accessories
Spare Probe, Probe extension cable, Probe extension rod,
Probe compression fittings, PC communication cable,
Data processing software

==================================
