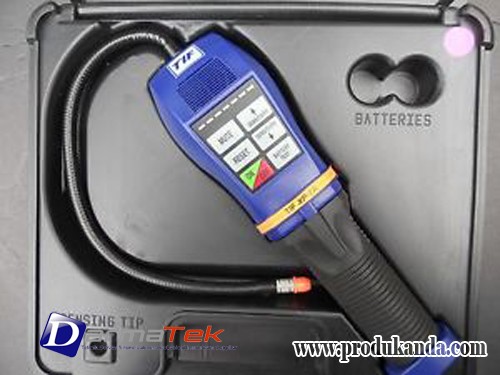

TIF XP 1A
Refrigerant Leak Detector

Microprocessor controlled circuit monitors the sensing tip up to 2000 times per-second
Detects all hologenated refrigerants
Variable frequency audible alarm
14 " Flexible stainless steel probe with telfon liner
Rubber cushion grip
Constant power indication
Power supply : 3VDC, two " C " cell alkaline batteries ( Included)
Sensing tip life : approx. 20 hours ( two tips included)
Operating temp : 30° to 125° F ( 0° to 52° C)
Blow molded carrying case included, optional holster
Certifed to SAE J1627
UL classified & CE approved
See chart for warranty information

Specifications:

Power Supply:
3V DC; Two " C " cell Alkaline Batteries

Sensitivity:
A Less than .05 oz/ yr ( 14gr/ yr)

Turn On:
Less than 0.1 oz/ yr. ( 3 gr/ yr) for all Halogen refrigerants

Ultimate Sensitivity:
( Level 5) for all refrigerants

Sensing Tip Life:
Approximately 20 Hour of use

Operating Temperature:
30o to 125o F ( 0o to 520 C)

Battery Life:
Approximately 30 hours of normal use

Duty Cycle:
Continuous, no limitation

Response Time:
Instantaneous

Reset Time:
One Second

Warm-up Time:
Approximately 2 seconds

Weight:
1.2 lbs. ( 560 grams)

Dimensions:
9 " x 2.5 " x 2.5 " ( 22.9cm x 6.5cm x 6.5cm)

Probe Length:
14 " ( 35.5cm)

= = = = = = = = = = = = = = = = = = = = = = = =
