FEATURES

PD-20 and PD-28 have the same shape and color but different specifications.
Meet IEC/ EN 61010-1, IEC/ EN 61010-2-031

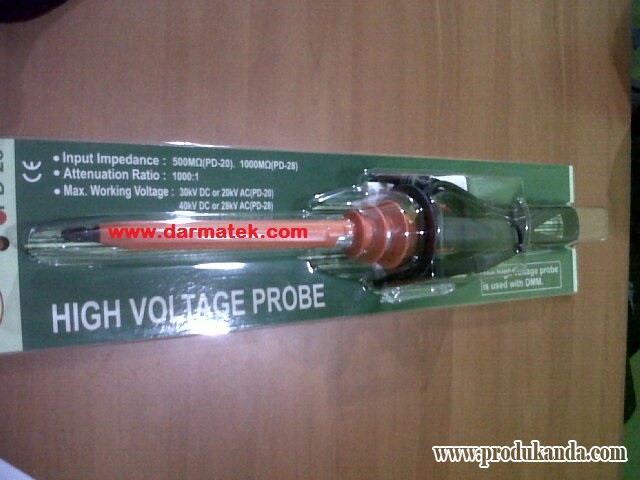

PD-20 is a high voltage probe that is used with DMM
PD-20 and PD-28 are high voltage probes. They measure both AC and DC voltages with your multimeter. They consist of 2 kinds of contact tips, a test clip for the ground, a set of test leads for multimeter and a high qualify enclosure. The enclosure has very good insulation properties.
They are lightweight and ruged. Two kinds of contact tips are avaialble. One is a round needle tip for normal use. Another is a special flat spring type for CRT anode.
Before taking any measurements, first connect the alligator clip of this probe to earth ground and amke sure connection is proper.

SPECIFICATIONS

Input Impedance 500M Ohm.
Attenuation Ratio 1000 : 1
Accuracy DCV ( 0 ~ 20kV) + / - 1% , DCV ( 20kV ~ 30kV) + / - 2% , ACV ( 0 ~ 20 kV) typically + / - 5% at 60Hz
Max. Working Voltage 30kV DC or 20kV AC
Operating Temperature 0 degree C ~ 50 degree C
Storage Temperature -10 degree C ~ 60 degree C
Cable Length 1m
Weight Approx. 260g

= = = = = = = = = = = = = = = = = = = = = = = = =
