Jual SEW 277HP High Voltage Detector
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
20-03-2018 20:46
Dapatkan Spesifikasi Harga

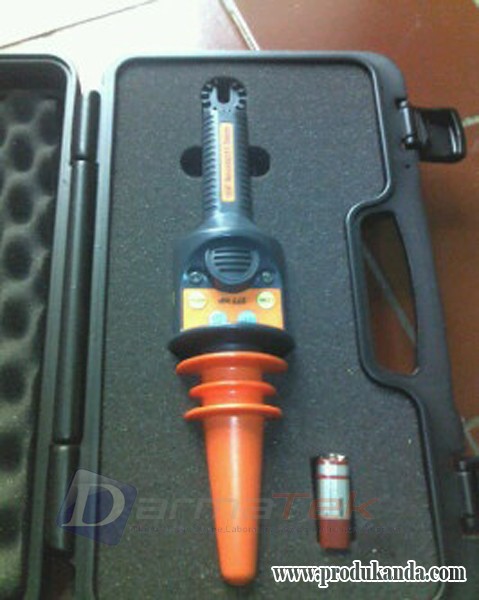

Jual SEW 277HP High Voltage Detector Produk Terbaik dari
DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll
Detail Produk
| FEATURES |
|
● 2 ranges for selection ( 2 function buttons )
LOW : 50V~1.5kV
Press the LOW button, 277 HP is ready for low voltage detection.
HIGH : 1.5kV~132kV
Press the HIGH button, 277 HP is ready for high voltage detection.
● Power consumption:
Off : Less than 5uA
Low voltage detection mode: Less than 40mA
High voltage detection mode: Less than 40mA
● Circuit test function
Press the Test button to make sure the whole circuit is working well
before testing actual high voltage circuits.
● Optional accessory:
HS-175 Telescopic hot stick (triangle-type)
HS-120 Hot stick
|
| |
| SPECIFICATIONS |
|
Operating
temperature |
0°C~50°C |
| Dimensions |
318(L) x 75(W) x 71(D)mm |
Weight
(battery included) |
Approx. 227g |
| Power source |
9V(6LF22) x 1 Alkaline battery |
| Safety standards |
EN 61326-1
EN 61000-4-2 EN 61000-4-3 |
|
|
