Jual SEW 230HD High Voltage Detector
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
20-03-2018 20:36
Dapatkan Spesifikasi Harga
Jual SEW 230HD High Voltage Detector Produk Terbaik dari
DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll
Detail Produk
|

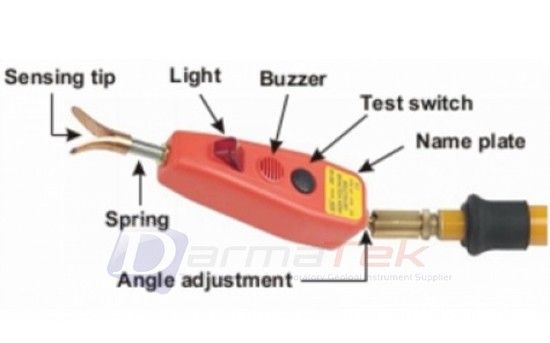

FEATURES
|
|
● Telescopic, compact, lightweight.
● High voltage detection.
● Self test button feature.
● Easy to recognize indication.
● High intensity red light emitting diode and intermittent audible sound
for easy recognition in full sunlight and noisy environments.
● Waterproof.
|
|
|
|
SPECIFICATIONS
|
| |
|
|
| |
|
230 HD
|
290 HD
|
|
Withstand voltage
(On insulating rod)
|
100kV / 300mm : 1 minutes |
|
Insulation
resistance
|
2000MΩ min by 1kV / DC megger at the
same testing location as withstand voltage |
|
Leakage current
|
100uA or less than 100uA at withstand
voltage test |
|
Construction
|
Water proof (detecting head
impervious to water) |
|
Measuring voltage
range
|
6kV~36.5kV
|
6kV~81.5kV
|
|
Operation start
voltage (To ground)
|
2.7kV
|
2.7kV
|
|
Display
|
Light : Flashing red light.
Sound : Intermittent sound 50 dB apart 3 m. |
|
Frequency
|
50/60Hz
|
|
Operating
temperature
|
0°C ~ 40°C
|
|
Battery
|
2 button-cells LR44(1.5V)
|
|
Overall
length
|
Retracted
|
893±50mm
|
1370±50mm
|
|
Extracted
|
1520±50mm
|
2450±50mm
|
|
Weight
(battery included)
|
Approx. 485g
|
Approx. 590g
|
|
Safety standards
|
IEC / EN 61243-1
|
|
|
|
