Specification
Imaging Performance
Field of View : 12 x 9º
Lens : 15mm ( standard) or see Options
Spatial Resolution : 1.3mrad
Thermal Sensitivity / NETD : 120mK / 0.12º C at 30º C
Image Frame Rate : 50 Hz full real time
Focus : Manual Adjust, 30cm ( 11.8 " ) to infinity
Detector : 160 x 120, Uncooled Microbolometer FPA ( ULIS France)
Spectral Range : 8 ~ 14µ m
Imaging Presentation
External Display : 63.5mm / 2.5º color LCD, Full screen pseudo color
Video Output : N/ A
Measurement
Temperature Range : -20 to 250º C ( -4 to 482º F)
Accuracy : ± 2º C or ± 2%
Measurement Modes : One moveable spot • Three movable area displaying max, min, avg band • Temperature difference •
Display Color : 3 Palettes
Temperature Scale : º C or º F selectable
Emissivity Correction : Variable 0.10 to 1.00 by 0.01 inrements
Environment Temperature : Automatic corrections based on user input
Correction
Image Storage
File Format : JPEG; 14 bit thermal measurement data included
Image Storage : 100 images
Voice Annotation : N/ A
Interface
Communication : USB 2.0
Video Output : N/ A
Others Interface : N/ A
Laser Locator : Class 2, semiconductor diode laser: 1mW / 635nm ( red)
Power Source
Power Supply : Built-in rechargeable Lithium-ion battery, field-replaceable
Battery Operation : Approximately 3 hours
Charger : 100 ~ 240V AC, 50/ 60 Hz
Power Requirement : 7.2V DC
Environmental
Operating/ Storage Temp. : -15 to 50º C ( -4 to 122º F) / -25 to 60º C ( -13 to 140º F)
Operating/ Storage Humidity : ± 90% , non-condensing
Endosure : IP 54
Physical Characteristics
Unit Dimensions : 250x100x72mm / 9.8x3.9x2.8 "
Unit Weight : 680g / 1.5lb ( including battery)
Tripod Mounting : 1/ 4 " - 20
Accessories / Options
Standard Accessories :

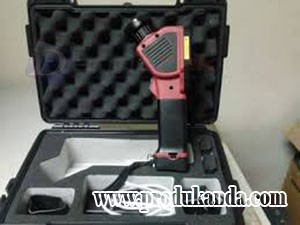

IR Camera with built-in Flash Card • IR Reporter Software • Two Rechargeable Batteries • Battery Charger • USB 2.0 Cable • Anti-glare viewer for outdoor • Lens Cap • User' s Manual • Carrying Case & Strap • Warranty Card • Certificate of
Product Conformance
Optional Accessories*
Video Cable • Power Cable • External Power Supply • Hi-Temperature 1000º C Lens • Lenses* * : 7.5mm ( 40º x 30º ) , 36mm ( 9º x 7º ) , 50mm ( 6º x 4.5º ) • Teleconverter 3x • Wide Angle Converter 0.5x
=====================================
