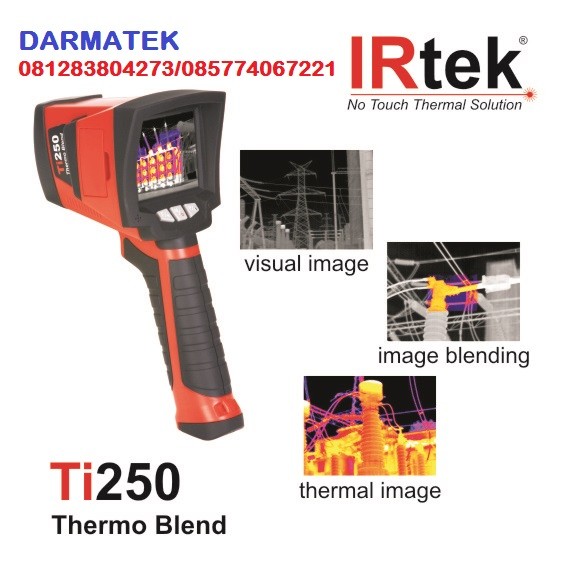

IRTEK Ti250 Thermal Camera
FEATURES
• Auto Focus
• 2.0 Megapixel CMOS
• Large Storage Capacity
• Rugged and Ergonomical Design
• Friendly Interaface fo Convenient Use
• IR Fusion Technology
• Flexible Battery Compatibility
• Low Cost
• High Performance
Thermal
Detector Type : Microblometer UFPA ( 160 x 120 pixels, 25µ m
Spectral Range : 8 ~ 14µ m
Field of View : 20.6º x 15.5º
Focus : 11mm
Thermal Sensitivity : d0.1° C at 30° C ( d0.18° F at 86° F)
Image Frequency : 50Hz PAL / 60Hz NTSC, non-interfaced
Image Display : 256 level, 8 palettes
Visual
Bulit-in Digital Video : CMOS Sensor, 1600x1200 pixels, 224 colors
External Display : 3.6 " TFT high resolution color LCD
Measurement
Temperature Range : -20 ~ 250° C, optional up to 350° C ( -4 ~ 482° F, optional up to 662° F)
Accuracy : ± 2º C( ± 3.6° F) or ± 2% of reading
Measurement Modes : Spot analysis, IR fusion
Image Storage
Type : 2G SD Card
File Format : standard JPEG
Voice Annotation : 60 seconds
System Status Indication
LCD Display : Low battery indication, power indication
Power Supply
Type : 110/ 220V AC adaptor, AA alkaline battery, AA rechargeable battery
Operating Time : More than 2 hours for continous operation
Charging System : In camera or in battery charger
Environmental
Operating Temperature : 0 ~ 50° C ( 32 ~ 122° F)
Storage Temperature : -20 ~ 60° C ( -4 ~ 140° F)
Humidity : Operating and stroing 10% to 95% , non condensing
Encapsulation : IP54
Shock : Operational 25g, IEC 68-2-29
Vibration : Operational 2g, IEC 68-2-6
Drop Test : 2 meters
Interfaces
USB 2.0 : Real time image ( thermal and visual) , measurement, and voice transfer to PC
Laser Locator : Semiconductor A1 GalnP Diode Laser
Physical Characteristic
Dimensions : 111 x 124 x 240mm
Weight : 0.73kg ( including battery)
Accessories
Standard : Rechargeable batteries, battery charger, USB 2.0 cable, instruction manual, warranty card,
certificate of product conformance
Optional : Telephoto lens ( 30mm, FOV 7.6° x 5.7° ) , wide angel lens ( 7mm, FOV 32° x 24° sun shield)
