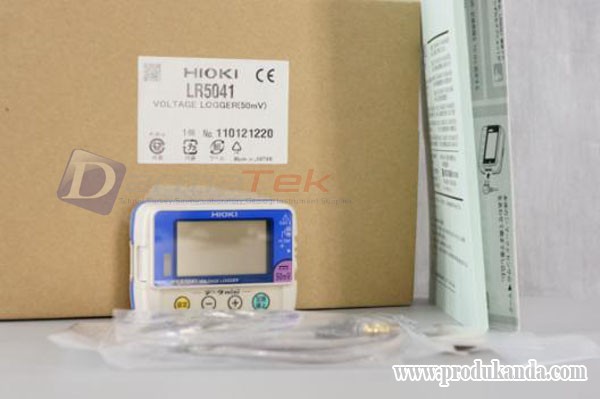

Record Instrumentation Signals and Measure Analog Output from Sensors and other Devices
Easily mount the light-weight , pocket-sized loggers in tight spaces
Easy-to-see dual display
Transfer data to PC even during recording
Replace batteries while recording( 30 second limit)
Record 60, 000 data per channel
Record without missing fluctuations in STAT mode
Measurement data is preserved even after the battery dies
Worry-free backup preserves recorded data even if a new measurement is started by mistake
Basic specifications ( Accuracy guaranteed for 1 year)
Features : Record instrumentation signals and measure analog output from sensors and other devices
Function : Preheat function ( When using preheat function, a separate external power supply is required.)
Measurement items : DC voltage 1ch
Measurement range : LR5041: -50.00mV to 50.00mV
LR5042: -5.000V to 5.000V
LR5043: -50.00V to 50.00V
Basic Accuracy : ± 0.5% rdg. ± 5dgt. ( @ 23° C± 5° C)
Waterproof and dustproof : IP54 ( splash-proof construction)
Operating temperature and humidity -20° C( -4° F) to 70° C( 158° F) , 80% rh or less ( non-condensating)
Dimensions & Mass : Approx. 79mm( 3.11in) W× 57mm( 2.24in) H× 28mm( 1.10in) D, 105g( 3.7oz)
Power supply : LR6 ( AA) Alkaline battery 1.5V× 1
Battery life Case 1 : Approx. 2 years
( 1min. recording interval, power-saving mode, Instantaneous recording, environmental temp.20° C)
Case 2: Approx. 2 months
( 1sec. recording interval, power-saving mode, Instantaneous recording, environmental temp.20° C)
Accessories CONNECTION CABLE LR9802× 1, Kickstand LR6 ( AA) Alkaline battery 1.5V× 1, Instruction manual × 1, Operation manual× 1
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
