1-channel 4-20mA Loggers to Record Instrumentation Signals and Other low DC A Signals

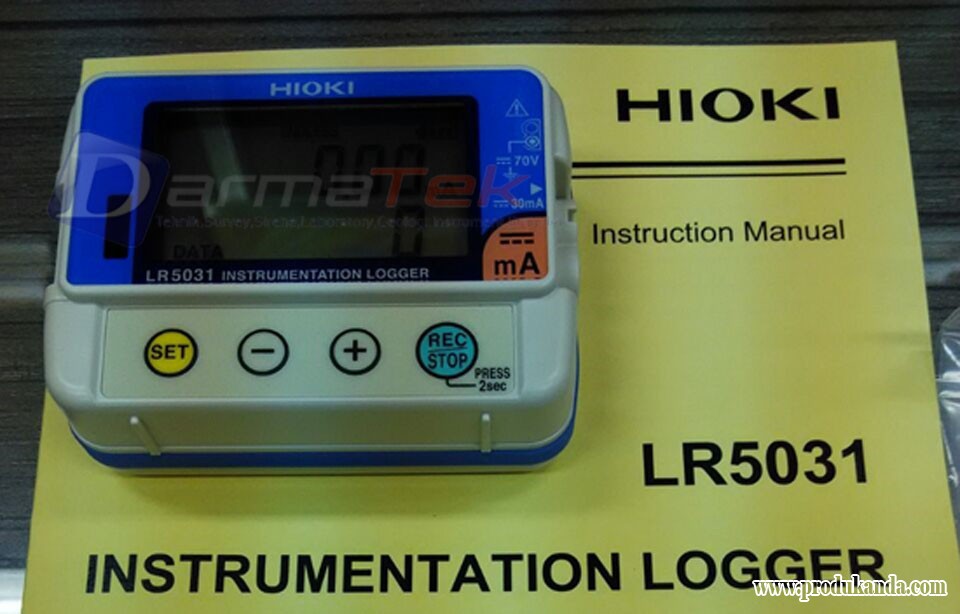

Hioki compact 1 or 2-channel data loggers feature a 60, 000 data set/ channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5031 instrumentation signals such as 4-20mA signals over 1 channel in as fast as 1 second intervals.

• 4 - 20 mA DC measurement only
• Easily mount the light-weight , pocket-sized loggers in tight spaces
• Easy-to-see dual display
• Transfer data to PC even during recording
• Replace batteries while recording ( 30 second limit)
• 3 times the memory capacity than predecessor ( Record 60, 000 data per channel)
• Measurement data is preserved even after the battery dies
• Worry-free backup preserves recorded data even if a new measurement is started by mistake

Measurement items : For Instrumentation / 0 to 20mA DC, 1ch
Measurement range : -30.00 to 30.00 mA
Accuracy : ± 0.5 % rdg. ± 5 dgt.
Storage capacity : Instantaneous value mode: 60, 000 data, Statistical value mode: 15, 000 data
Recording interval : 1 to 30 sec., 1 to 60 min., 15 selections

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
