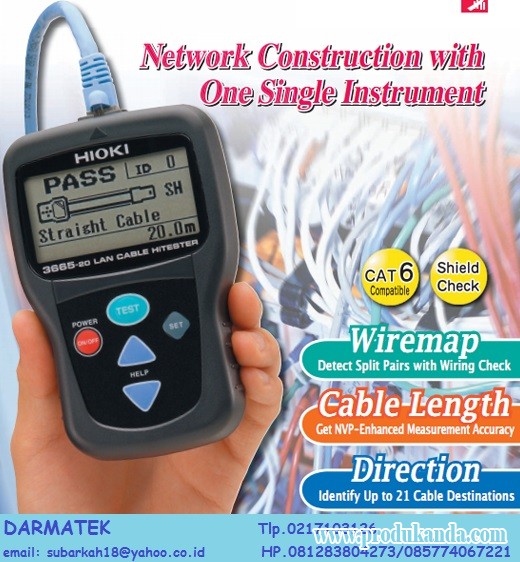

LAN CABLE HiTESTER 3665-20
Identify the 3 most important criteria for proper networking at a glance
Wire map check : Detect split pairs with wiring check
Cable length : Get NVP-Enhanced measurement accuracy
Direction check : Identify up to 21 cable destinations
Basic specifications
Measurable cable Twisted-pair cable
100ohm characteristic impedance, shielded and unshielded,
CAT 3, 4, 5, 5e and 6
Compatible connectors RJ-45 plugs
WireMap check Wiring condition and shielding can be confirmed using the HIOKI TERMINATOR 9690
Detectable errors: open, short, reversed, transposed, split pairs and other miswiring
Cable length check Measurable lengths: 2 to 300 m, 6.6 to 984 ft
Measurement accuracy: ± 4% rdg. ± 1 m, ± 4% rdg. ± 3.3 ft
Display resolution: 0.1 m, 0.3ft
Direction check Up to 21 cables can be identified using the supplied TERMINATOR 9690 and optional Models 9690-01 to 9690-04
Display 128 x 64 dot matrix LCD ( with backlight)
Functions Auto Backlight: pressing a button turns the backlight on ( it turns off automatically after about 20 seconds)
Beeper: sounds when pressing buttons and when measurement results are displayed
Energy-Saving Mode: enter into energy-saving mode after measurement ( and resume when the TEST button is pressed)
Auto Power Save: the 3665-20 turns off automatically about 10 minutes after the last button press
Battery Check: Battery indicator blinks when voltage falls below 2.4 V
Unit Switch: select between meters or feet
Power supply Two AA-size ( LR6) alkaline batteries 1.4VA Approx. 50 hours
Dimensions, mass Approx. 85 W x 130 H x 33 D mm, approx. 160 g
Accessories TERMINATOR 9690 ( 1)
CARRYING CASE( 1) ( Stores the HiTESTER 3665-20 and TERMINATORs 9690)
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
