DESCRIPTION:

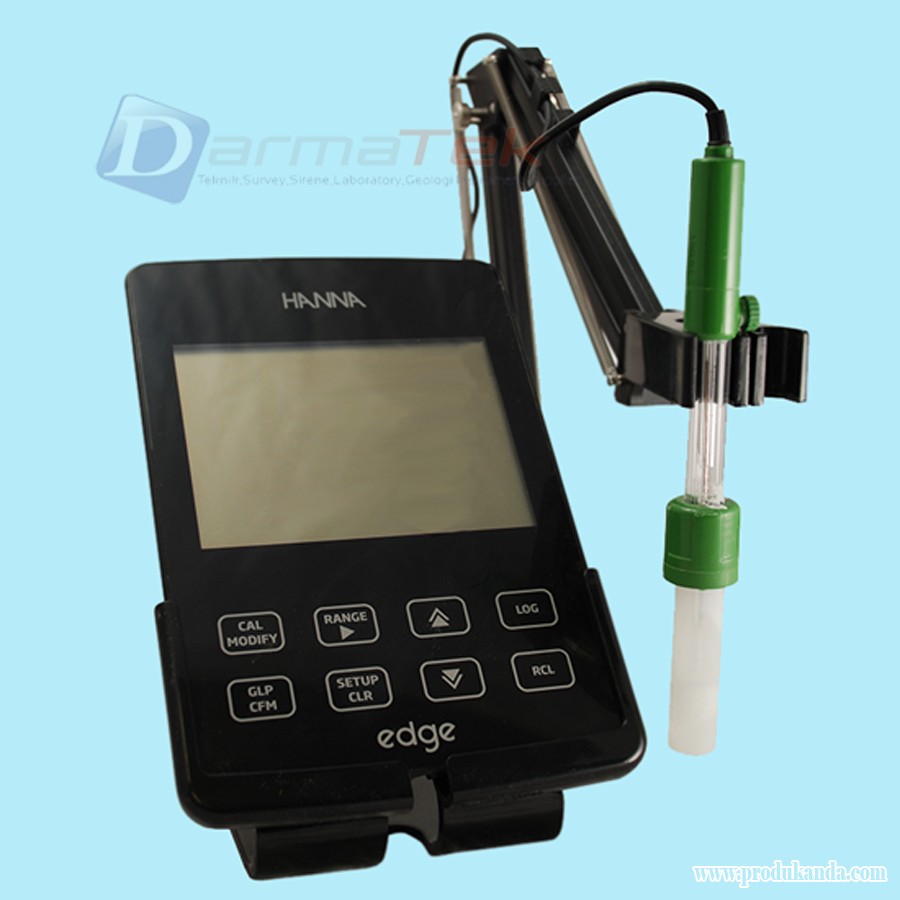

Hanna Instruments is proud to introduce the world’ s most innovative pH, EC, and DO meter... edge™ .
edge is thin and lightweight, measuring just 1D2” thick and weighing less than 9 ounces. edge has an incredibly wide viewing angle, 5.5” LCD and a sensitive capacitive touch keypad.
edge measures pH, conductivity and dissolved oxygen through its unique digital electrodes. These digital electrodes are auto-recognized. Providing sensor type, calibration data and serial number when connected to edge with an easy to plug-in 3.5mm connector. edge’ s versatile design is equally at home in your hand, on a lab bench or mounted on a wall. It simplifies measurement, configuration, calibration, diagnostics, logging and transferring data to a computer or a USB drive.
edge features Hanna’ s exclusive CAL-CHECK® to warn you if the pH electrode you are using is not clean or if your buffers are contaminated during calibration. Indicators are also displayed for response time and probe condition that is based on the offset and slope of the electrode. We have also added to SENSOR-CHECK for sensors with matching pin: now it warns you if the pH bulb is cracked or if the junction of the electrode is clogged.
edge is the culmination of Hanna’ s vision, design capabilities, integrated production facilities, and world class R& D teams. With edge, Hanna has set the new standard!
FEATURES
Thin, Lightweight Design
Multiparameter ( ability to measure pH, EC or DO)
pH Electrode Monitoring Technology ( Sensor Check and Cal Check)
Multiple Calibration Points
Built-in Temperature Sensor on all Electrodes
Log on Demand
Large, easy to read LCD
Capacitive Touch
Dual USB ports
GLP feature
Rechargeable Battery
SPESIFICATION:
DO Range : 0.00 to 45.00 mg/ L ( ppm)
0.0 to 300.0% saturation
DO Resolution : 0.01 mg/ L ( ppm)
0.1% saturation
DO Accuracy @ 25° C/ 77° F : ± 1.5% of reading ± 1 digit
DO Calibration Points : 1 point slope calibration with probe in water saturated air ( 100% )
1 point offset calibration in HI 7040 solution ( 0% )
DO Temperature Compensation: Automatic: 0.0 to 50.0° C; 32.0 to 122.0° F
DO Salinity Compensation: 0 to 40 g/ L ( 1 g/ L resolution)
DO Altitude Compensation : -500 to 4000m ( 100m resolution) , -1640 to 13120’ ( 328’ resolution)
Temperature Range [ ° C/ ° F] : -20.0 to 120.0° C; -4.0 to 248.0° F
Temperature Resolution : 0.1° C; 0.1° F
Temperature Accuracy @ 25° C/ 77° F : ± 0.5° C; ± 1.0° F
° C/ ° F : YES
GLP : YES
Keyboard : 9 Keys ( on/ off, 8 dedicated)
Log Feature : Up to 1000 records organized in Manual Log on demand ( Max. 200 logs) , Manual log on Stability ( Max. 200 logs) , Interval logging with up to 100 lots ( Max. 600 logs/ lot)
Storage Interface : USB
PC Interface : Micro USB
Power Supply : 5 VDC
Dimensions : 202 x 140 x 12.7 mm ( 8” x 5.5” x .05” )
Weight : 250 grams ( 8.82 oz.)
* with temperature compensation function disabled
* * temperature limits will be reduced to actual probe/ sensor limits
* * * pH 3.00 is only visible when using specific pH electrodes and will replace pH 4.01 buffer
