- CAL CHECK™
- User calibration
- Certified calibration and verification standards
- BEPS (Battery Error Prevention System)
- TIMER function
- Auto shut-off
- GLP Features

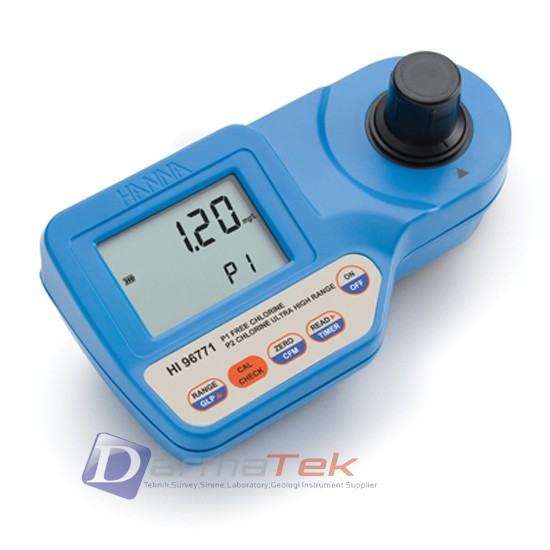

HI 96771 has been developed to check chlorine dosing in disinfection processes with ultra high concentrations of chlorine. Thanks to the extended range from 0 to 500 mg/L (ppm), it is ideal for the food industry, such as in fruit and vegetable washing.
The HI 96771 meter measures the free chlorine (Cl2) from 0- 5 ppm content in water nd total chlorine in the ultra high range 0-500 ppm. The methods are an adaptation of Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl.
The meter uses an exclusive positive-locking system to ensure that the cuvette is in the same position every time it is placed into the measurement cell. It is designed to fit a cuvette with a larger neck making it easier to add both sample and reagents. The cuvette is made from special optical glass to obtain best results.
Spesification :
| Range | Free Chlorine: 0.00 to 5.00 mg/L Chlorine UHR: 0 to 500 mg/L |
|
| Resolution | Free Chlorine: 0.01 mg/L from 0.00 to 3.50 mg/L; 0.10 mg/L above 3.50 mg/L; Chlorine UHR: 1 mg/L from 0 to 200 mg/L; 10 mg/L above 200 mg/L |
|
| Accuracy | Free Chlorine: ±0.03 mg/L ±3% of reading @ 25°C; Chlorine UHR: ±3 mg/L ±3% of reading @ 25°C |
|
| Light Source | Tungsten lamp | |
| Light Detector | silicon photocell with narrow band interference filter @ 466 nm | |
| Power Supply | 9V battery | |
| Auto-off | After 10 minutes of non-use in measurement mode; After 1 hour of non-use in calibration mode; with last reading reminder. | |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing | |
| Dimensions | 192 x 104 x 69 mm (7.6 x 4.1 x 2.7") | |
| Weight | 360 g (12.7 oz.) | |
| Method | Adaptation of Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl. |
