- Supplied with two probes
- Automatic probe recognition
- On-screen operation guide
- Automatic Temperature Compensation

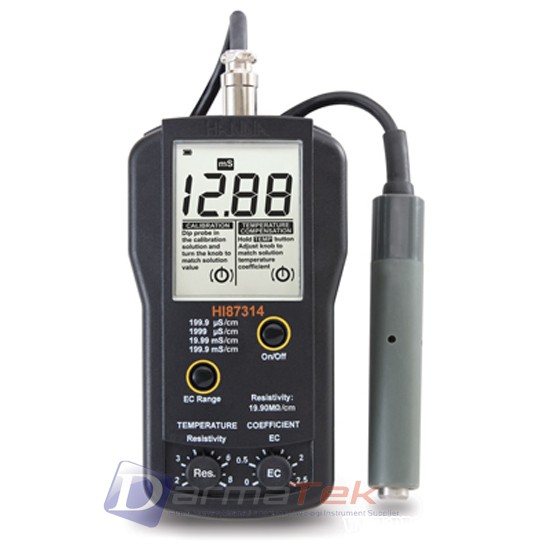

HI 87314 is a combination, portable meter that can read conductivity in four different ranges and resistivity.
For conductivity measurements, a one-point calibration is performed via a trimmer located in the battery compartment. The supplied probe does not require recalibration when switching from one range to another. The four-ring (stainless steel) probe has a built-in temperature sensor that automatically compensates for temperature changes. The temperature coefficient can be adjusted from 0 to 2.5% using a knob on the front panel.
For resistivity measurements, the meter is factory calibrated and, if necessary, calibration can be adjusted. The HI 3316D resistivity probe is easy to clean and requires little maintenance. It also features a built-in temperature sensor to automatically compensate for temperature variations. The temperature coefficient is user-selectable from 2 to 7%.
Spesification :
| Range | EC | 199.9 µS/cm; 1999 µS/cm; 19.99 mS/cm; 199.9 mS/cm |
| Resistivity | 0 to 19.90 MO•cm | |
| Resolution | EC | 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm |
| Resistivity | 0.10 MO•cm | |
| Accuracy @ 20°C | EC | ±1% FS |
| Resistivity | ±2% FS | |
| Calibration | Manual, 1 point, for both EC and resistivity | |
| Temperature Compensation |
Automatic from 0 to 50°C with ß selectable from 0 to 2.5%/°C for EC and from 2 to 7%/°C for resistivity | |
| Probes | HI 76302W conductivity probe with internal temperature sensor, DIN connector and 1 m (3.3’) cable; HI 3316D resistivity probe with internal temperature sensor, DIN connector and 1 m (3.3’) cable | |
| Battery Type / Life | 9V / approximately 100 hours of continuous use | |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% | |
| Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’) | |
| Weight | 230 g (8.1 oz.) |
