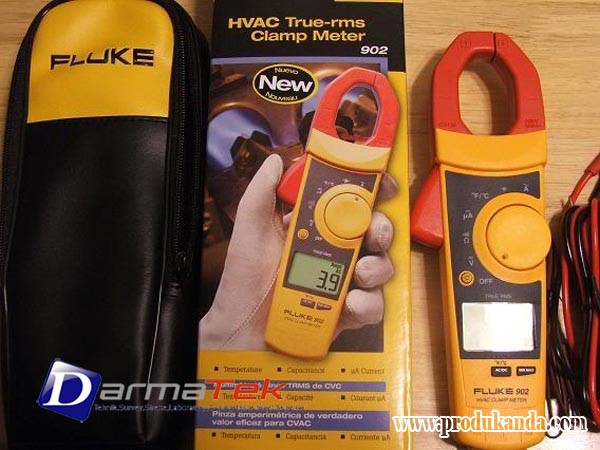

Fluke 902 True-rms HVAC Clamp Meter

If you' re an HVAC service technician, the 902 helps you get more done without the need to carry multiple meters. That' s because it is designed for the systems you service and install daily. With True RMS technology and a CAT III 600V rating, you can troubleshoot and maintain HVAC equipment safely and with confidence in the results.

Designed for HVAC applications with capacitance, DC Current ( µ A) , and temperature measurements
Small body and jaws fit perfectly in your hand and into tight places
Handy ' Display Hold' button keeps measurements on the display
Meter controls are positioned so current measurements can be done with one hand ( index finger on clamp opening lever and thumb on rotary switch)
Large, backlit display is easy-to-see in less than ideal conditions
Auto shut-off maximizes battery life so the meter works when you need it

Specifications
Voltage DC Range 0 – 600.0 V
Accuracy 1% ± 5 counts
Voltage AC ( True RMS) Range 0 – 600.0 V
Accuracy 1% ± 5 counts ( 50/ 60 Hz)
Current AC ( True RMS) Range 0 – 600.0 A
Accuracy 2.0% ± 5 counts ( 50/ 60 Hz)
Current DC Range 0 - 200.0 µ A
Accuracy 1.0% ± 5 counts
Resistance Range 0 – 9999 ©
Accuracy 1.5% ± 5 counts
Continuity < = 30 ©
Temperature*
( Type K Thermocouple) Range -10 degree C to 400 degree C ( -14 degree F to 752 degree F)
Accuracy + / - 1.0% + 0.8 degree C ( + / - 1.0% + 1.5 degree F) typical
Range -40 degree C to -10 degree C ( -40 degree F to -14 degree F)
Accuracy + / - 5.0% + 1.5 degree C ( + / - 5.0% + 3.3 degree F) typical
Capacitance Range 1-1000 µ F
Accuracy 1.9% ± 2 counts

* Error does not include Type K Thermocouple errors
Mechanical and General Specifications
Weight 1.5 lbs ( .7 kg)
Dimensions 10.75” x 4.25” x 2.44” ( 27.3 cm x 10.8 cm x 6.2 cm)
Battery type ( 2) AA Alkaline Batteries

= = = = = = = = = = = = = = = = = = = = = = = = = = = = =
