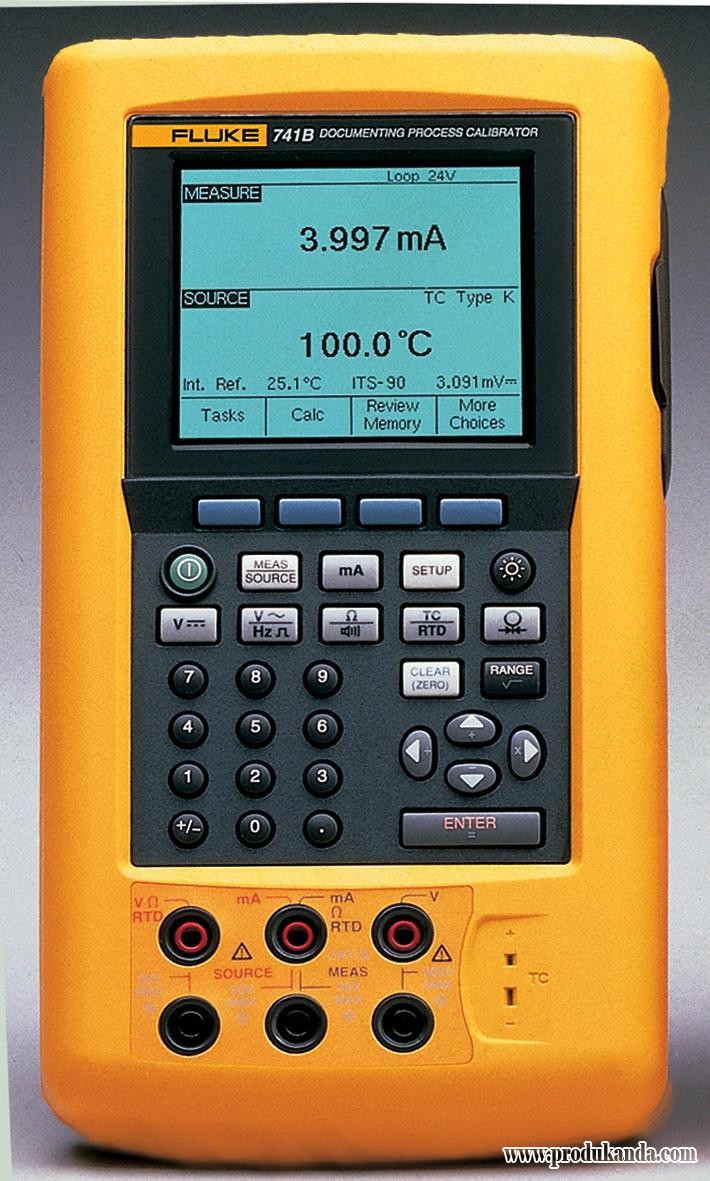

Fluke 741B Documenting Process Calibrator
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
01-12-2014 16:20
Dapatkan Spesifikasi Harga
Fluke 741B Documenting Process Calibrator Produk Terbaik dari
DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll
Detail Produk
The 741B is easy to use with flexible test strategies. And like all Fluke tools, it's rugged, reliable and tough as nails. It's like having several powerful tools in one - so you can work faster than ever:
- Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
- Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
- Power transmitters during test using loop supply with simultaneous mA measurement
- Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
- Measure and source simultaneously with one compact, rugged, reliable tool
- Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
- Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
- Easy to use
- Three year warranty
- Bright white display. Read both sourced and measured parameters.
- Multi lingual interface
- Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1msec.
|
| Measurement Accuracy |
| Voltage DC |
| 110.000 mV |
0.025%+0.015% * |
| 1.10000 V |
0.025%+0.005% * |
| 11.0000 V |
0.025%+0.005% * |
| 110.000 V |
0.05%+0.005% * |
| 300.00 V |
0.05%+0.005% * |
|
| Voltage AC |
| 20 to 40 Hz |
2% + 10 |
| 40 to 500 Hz |
0.5% + 5 |
| 500 to 1 kHz |
2% + 10 |
| 1 kHz to 5 kHz |
10% + 20 |
| Ranges: |
1.1000, 11.000, 110.00, 300V |
|
| Current DC |
| 30.000 mA |
0.01% + 0.015% * |
| 110.00 mA |
0.01% + 0.015% * |
|
| Resistance |
| 11.000 Ω |
0.05% + 50 mΩ |
| 110.00 Ω |
0.05% + 50 mΩ |
| 1.1000 kΩ |
0.05% + 500 mΩ |
| 11.000 kΩ |
0.1% + 10 Ω |
|
| Frequency |
| 1.00 to 109.99 Hz |
0.05 Hz |
| 110.0 to 1099.9 Hz |
0.5 Hz |
| 1.100 to 10.999 kHz |
5 Hz |
| 11.00 to 50.00 kHz |
50 Hz |
|
| Pressure |
| Accuracy |
from 0.025% of range using any of 29 pressure modules. |
| |
(for detailed specifications refer to pressure modules in options and accessories) |
| |
Modules available for differential, gauge, vacuum, absolute, dual and high pressure. |
|
| Note |
| * |
(% of reading + % of full scale) |
|
| Source Accuracy |
| Voltage DC |
| 110.000 mV |
0.01%+0.005% * |
| 1.10000 V |
0.01%+0.005% * |
| 15.0000 V |
0.01%+0.005% * |
|
| Current DC |
| 22.000 mA (Source) |
0.01%+ 0.015% * |
| 22.000 mA (Simulate) |
0.02% + 0.03% * |
|
| Resistance |
| 11.000 Ω |
0.01% + 20 mΩ |
| 110.00 Ω |
0.01% + 40 mΩ |
| 1.1000 kΩ |
0.02% + 500 mΩ |
| 11.000 kΩ |
0.03% + 5Ω |
|
| Frequency |
| 0.00 to 10.99 Hz |
0.01 Hz |
| 11.00 to 109.99 Hz |
0.1 Hz |
| 110.0 to 1099.9 Hz |
0.1 Hz |
| 1100 to 21999 Hz |
2 Hz |
| 22.000 to 50.000 kHz |
5 Hz |
|
| Note |
| * |
(% of reading + % of full scale) |
|
| RTDs and Thermocouples |
| Measure Accuracy: |
| 10 Ω Cu (427): |
2 °C |
| 100 Ω Pt (3916): |
0.3 °C |
| 100 Ω Pt (3926): |
0.3 °C |
| 100 Ω Pt (385): |
0.3 °C |
| 200 Ω Pt (385): |
0.3 °C |
| 500 Ω Pt (385): |
0.3 °C |
| 1000 Ω Pt (385): |
0.3 °C |
| 120 Ω Ni (672): |
0.3 °C |
| note: |
For 2-and 3-wire measurement, add 0.4 °C |
| E: |
0.3 °C |
| N: |
0.5 °C |
| J: |
0.3 °C |
| L: |
0.3 °C |
| K: |
0.3 °C |
| T: |
0.3 °C |
| U: |
0.3 °C |
| B: |
0.9 °C |
| R: |
1.0 °C |
| S: |
0.9 °C |
| C: |
0.6 °C |
| note: |
Accuracy with external cold junction, for internal junction add 0.2°C |
|
| Source Accuracy: |
| 10 Ω Cu (427): |
1 °C |
| 100 Ω Pt (3916): |
0.1 °C |
| 100 Ω Pt (3926): |
0.1 °C |
| 100 Ω Pt (385): |
0.1 °C |
| 200 Ω Pt (385): |
0.1 °C |
| 500 Ω Pt (385): |
0.1 °C |
| 1000 Ω Pt (385): |
0.1 °C |
| 120 Ω Ni (672): |
0.1 °C |
| note: |
For 2-and 3-wire simulation, add 0.4 °C |
| E: |
0.2 °C |
| N: |
0.3 °C |
| J: |
0.2 °C |
| L: |
0.2 °C |
| K: |
0.3 °C |
| T: |
0.3 °C |
| U: |
0.3 °C |
| B: |
0.8 °C |
| R: |
0.9 °C |
| S: |
0.9 °C |
| C: |
0.6 °C |
| note: |
Accuracy with external cold junction, for internal junction add 0.2 °C |
|
| Specifications |
| Ramp Functions |
| Source functions: |
Voltage, current, resistance, frequency, temperature |
| Rate: |
4 steps/second |
| Trip detect: |
Continuity or voltage (continuity detection not available when sourcing current) |
|
| Loop Power Function |
| Voltage: |
Selectable, 24 V or 28 V |
| Accuracy: |
5% |
| Maximum current: |
22 mA, short circuit protected |
| Maximum input voltage: |
30 V DC |
|
| Step Functions |
| Source Functions |
Voltage, current, resistance, frequency, temperature |
| Manual Step |
Selectable step, change with arrow buttons |
| Autostep |
Fully programmable for function, start delay, stepvalue, time per step, repeat |
|
| Environmental Specifications |
| Operating Temperature |
| |
-10 °C to +50 °C |
| |
-20 °C to +50 °C * |
|
| Storage Temperature |
|
| Dust/water resistance |
|
| Operating Altitude |
|
| Note |
| * |
Except frequency and AC |
|
| Safety Specifications |
| Agency Approvals |
| |
CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993 |
|
| Mechanical & General Specifications |
| Size |
|
| Weight |
|
| Batteries |
|
| Battery Life |
|
| Battery Replacement |
| |
Via snap-shut door without opening calibrator; no tools required |
|
| Side port connections |
| |
Pressure module connector |
| |
Connection for optional battery eliminator |
|
| Data storage capacity |
| |
1 day of calibration results |
|
| 90 day specifications |
| |
The standard specification intervals for the 741B is 1 and 2 years. |
| |
Typical 90 day measurement and source accuracy can be estimated by |
| |
dividing the one year "% of reading" or "%of output" specifications by 2. |
| |
Floor specifications, expressed as "% of full scale" or |
| |
"counts" or "ohms" remain constant. |
|
