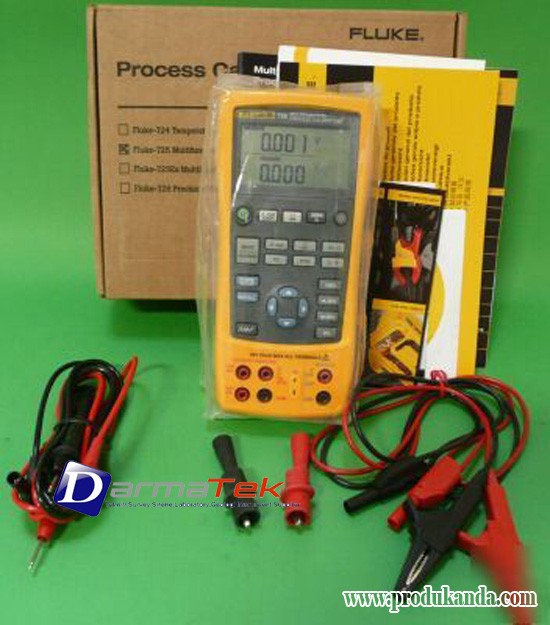

FLUKE 725 Multi function Process Calibrator

Harga :

CALL

Merk :

Fluke

Pengiriman :

3 hari sejak pembayaran

Lokasi :

Dilihat :

198 Kali

Update Terakhir :

01-12-2014 16:07

Dapatkan Spesifikasi Harga FLUKE 725 Multi function Process Calibrator Produk Terbaik dari DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll

Detail Produk

The Fluke 725 Multifunction Process Calibrator is a powerful, yet easy-to-use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter.

Small, streamlined shape, rugged, reliable design stands up to field use
Easy to read measure/source screen lets you view input and output simultaneously
Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Source mA with simultaneous pressure measurement to conduct valve and I/P tests
Support flow meter testing with frequency and CPM functions
Perform fast linearity tests with auto- step and auto-ramp features
Power transmitters during test using loop supply with simultaneous mA measurement
Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
Store frequently used test setups for later use

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	30.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Frequency	2.0 to 1000.0 CPM	0.05% + 1 count
	1.0 to 1100.0 Hz	0.05% + 1 count
	1.00 to 10.00 kHz	0.05% + 1 count
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (source)	0.02% + 2 counts
Current DC	24.000 mA (simulate)	0.02% + 2 counts
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1100.0 Hz	0.05%
	1.00 to 10.00 kHz	0.25%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to 71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
