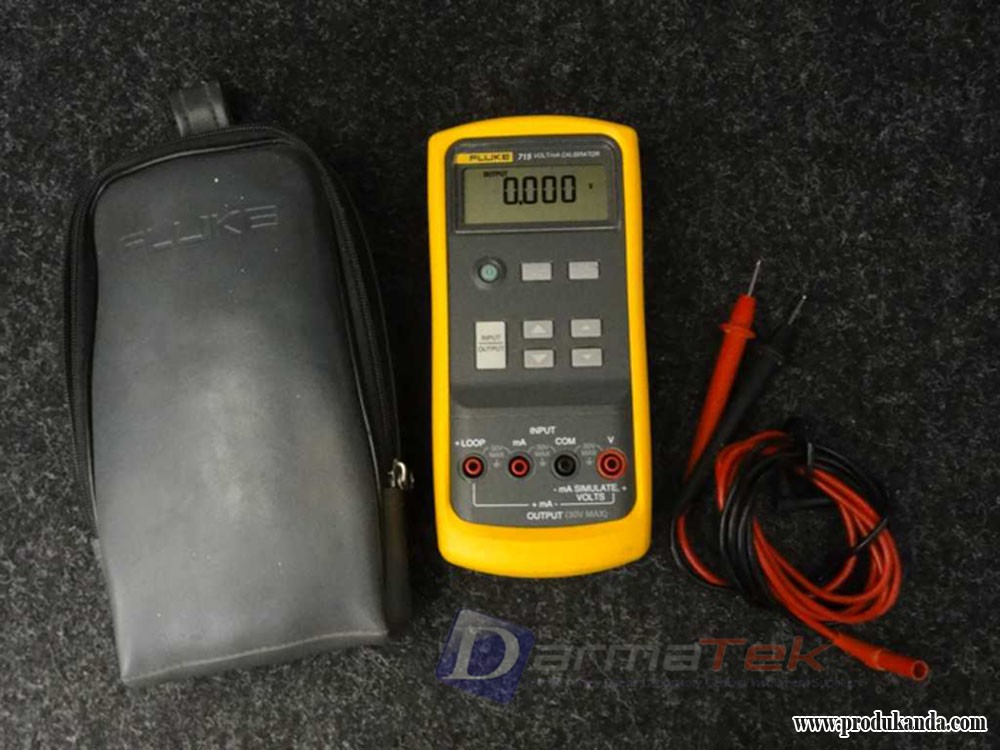

Features at a Glance:
- Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
- Measure voltage output process signals from PLCs, transmitters
- Source or simulate 24 mA loop current
- Source voltage to 100 mV or 10V
- 24V loop supply with simultaneous current measurement
- Enhanced voltage and current measure and source accuracy
- Improved battery life
- 250 ohm HART resistor with loop power
- Holster features test lead storage
- Compatible with toolpack magnetic hanging system
- Step and linear ramp output function
- Configurable zero and span settings
| Functional Specifications | ||
| Measure / Source mV | Range | 0 to 200 mV |
| Resolution | 0.01 mV | |
| Accuracy | 0.015% + 2 counts | |
| Measure / Source V | Range | 0 to 20 V |
| Resolution | 0.001 V | |
| Accuracy | 0.01% + 2 counts | |
| Measure / Source/ Simulate mA (% of span) | Range | 0 to 24 mA (-25% to 125%) |
| Resolution | 0.001 mA | |
| Accuracy | 0.01% + 2 counts | |
| Sink (simulate transmitter) display mA or % of span | ||
| Specifications | ||
| Loop power | Range | 24 V DC |
| Accuracy | ±10% | |
| Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V | ||
| Display | Clear 5 digit LCD | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 55°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 95% (10°C to 30°C) | |
| 75% (30°C to 40°C) | ||
| 45% (40°C to 50°C) | ||
| 35% (50°C to 55°C) | ||
| Operating altitude | 3,000 m max | |
| Safety Specifications | ||
| Safety | CSA C22.2 No. 1010.1:1992 | |
| Mechanical and General Specifications | ||
| Size (L x W x D) | 187 x 87 x 32 mm | |
| (7.93 x 3.86 x 2.06 in) | ||
| Weight | Approx. 330 g | |
| (21 oz) | ||
| Warranty | 3 years | |
| Shock and vibration | Random, 2 G, 5-500 Hz | |
| 1 m drop test | ||
| Battery type | Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline | |
