FLUKE 714 Thermocouple Calibrator
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
01-12-2014 15:35
Dapatkan Spesifikasi Harga
FLUKE 714 Thermocouple Calibrator Produk Terbaik dari
DarmatekInstrument Alat Survey,Teknik,Laboratory,Sirine,Geologi,Alat Ukur,Instrument,dll
Detail Produk

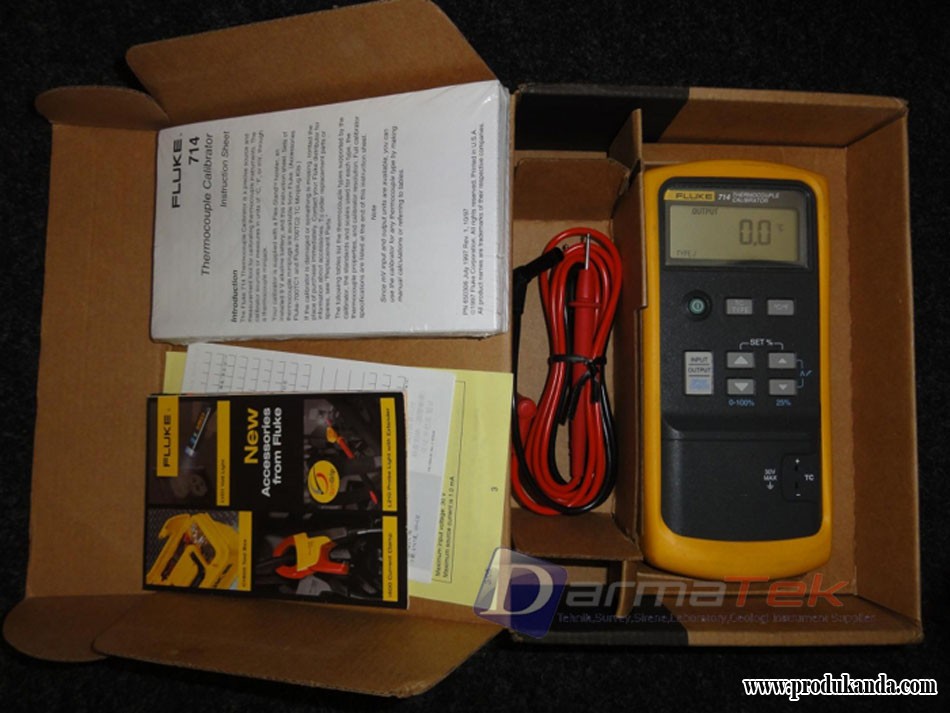

The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 750 Seriesdocumenting process calibrators, the 714 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
- Measure temperature from TC output
- Simulate TC output
- Operable with nine types of thermocouples
- Calibrate linear TC transmitter with mV source function
- Selectable °F or °C
- Thermocouple mini-jack termination
- Available as accessories: Fluke-700TC1 and TC2 Thermocouple Mini-plug Kits
- Holster features test lead storage
- Compatible with toolpack magnetic hanging system
| Functional Specifications |
| Measure / simulate thermocouple |
Range |
-200 to 1800°C, depending on type |
| Resolution |
0.1°C |
| Accuracy |
0.3°C + 10 µV |
| 9 TC types; J K T E R S B per NIST 175 and ITS-90 L U per DIN 43710 and IPTS-68 |
| Measure / simulate mV |
Range |
-10 to 75 mV |
| Resolution |
0.01 mV |
| Accuracy |
0.025% + 1 count |
| Specifications |
| Display |
LCD, 5 digit temperature and current sim ultaneous |
| Environmental Specifications |
| Operating temperature |
-10°C to 55°C |
| Storage temperature |
-40°C to 60°C |
| Humidity (without condensation) |
95% (10°C to 30°C) |
| 75% (30°C to 40°C) |
| 45% (40°C to 50°C) |
| 35% (50°C to 55°C) |
| Operating altitude |
3,000 m max |
| Safety Specifications |
| Safety |
CSA C22.2 No. 1010.1:1992 |
| Mechanical and General Specifications |
| Size (L x W x D) |
187 x 87 x 32 mm |
| (7.93 x 3.86 x 2.06 in) |
| Weight |
Approx. 330 g |
| (21 oz) |
| Warranty |
3 years |
| Shock and vibration |
Random, 2 G, 5-500 Hz |
| 1 m drop test |
| Battery type |
Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline |
