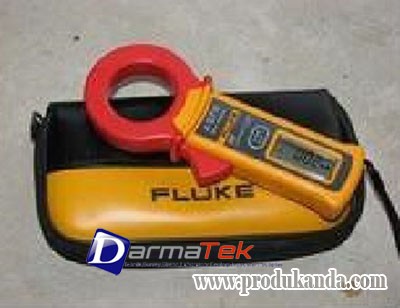

Fluke 360 AC Leakage Current Clamp Meter
The Fluke 360 leakage tester is a rugged and accurate solution for leakage current measurement.
Ideally designed for non-invasive checks of insulation condition, the Fluke 360 leakage meter allows you to perform tests without powering down the installation or disconnecting equipment - saving you time, without compromising on quality or safety.
he unique jaw design of the Fluke 360 AC Leakage Current Clamp Meter eliminates the influence of adjacent current conductors, and minimizes the effects of external magnetic fields, even at low currents. This allows you to perform accurate and reliable tests in today’ s crowded electrical environments. The tough and high-quality jaw design of the Fluke 360 leakage tester guarantees high stability for long-term repeatability and durability.
Why leakage current testing?
Leakage currents can be an indicator of the effectiveness of insulation on conductors. High levels of leakage current may be present in circuits where either the insulation resistance is low, or electronic equipment with filters is used. Leakage currents can cause disruptions of the normal operation of equipment and installations. It is possible to locate the source of leakage currents by using the Fluke 360 leakage current clamp meter and taking methodical measurements throughout the installation. The big advantage of leakage current testing versus insulation testing is that the installation and equipment do not need to be powered down but can be done during normal operation.
Measurement of leakage current with 3 mA range and 1 µ A of resolution, for accurate monitoring of insulation erosion
Broad range of measurement, from 1 µ A up to 60 A, for all installation needs
Advanced shielding to ensure accurate results when measuring near other conductors
The high durability clamp construction can withstand over 50, 000 operations, added ruggedness that extends the life of your leakage clamp.
Easy-to-carry, pocket-sized leakage current tester with wide 40 mm ( 1.5 in) jaw size
Handy “ Display-Hold” button for capturing leakage current readings in hard-to-reach places
Auto power-off, with warning buzzer, saves battery life
Conformance to IEC1010 and EMC standard for confident measurements
Meets all of the applications and performance classes in safety standard VDE0404-4 and VDE0702 for leakage current and differential current measurement of electrical appliances
General Specifications
Method of detection Mean value
Display Digital display 3200 counts
Bar-graph display 32 segments, LCD
Measurement cycle 2 times/ second ( digital display) , 12 times/ second ( bar-graph display)
Range switching Auto-range
Ambient temperature and humidity 0 ° C to 50 ° C, 80 % RH or less ( no condensation)
Temperature coefficient 0.05% of range/ ° C or less ( within the ranges of 0 ° C to 18 ° C and 28 ° C to 50 ° C for measurement of 0-50 A)
Influence of external magnetic field 0.0005% typical
Influence of conductor position Within accuracy
Circuit voltage < 300 Vrms
Safety standard EN 61010-1, EN 61010-2-032, 300 V CAT III, Pollution Degree 2
Withstanding voltage 3.7 kV ac
Battery type 1 x 3 V Lithium battery ( button cell) CR2032
Battery life Approx. 90 hours ( when continuously used)
Auto power-off Approx. 10 minutes
Diameter of measurable conductor 40 mm max.
Weight 200 g
Dimension 176 mm x 70 mm x 25 mm
Operating altitude 2000 m
Electrical Specification
Specifications at 23 ± 5 º C, 80 % RH max
Accuracy ( % readout + value of least significant digit)
3 mA Resolution 0.001 mA
Accuracy 1% + 5
Max permissible current 60 A rms
30 mA Resolution 0.01 mA
Accuracy 1% + 5
Max permissible current 60 A rms
30 A Resolution 0.01 A
Accuracy % + 5
Max permissible current 60 A rms
60 A Resolution 0.1 A
Accuracy 5% + 5
Max permissible current 60 A rms
Mean value detection and rms-value calibration Accuracy specified at 50/ 60 Hz
