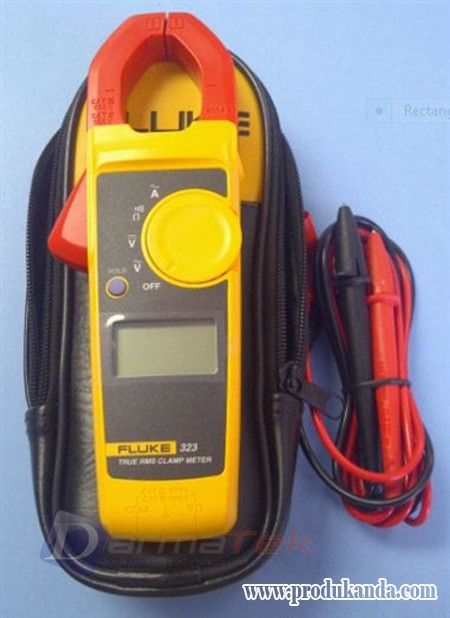

Fluke 323 True-rms Clamp Meter

True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.

Measurement capability

400 A ac current measurement
600 V ac and dc voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 40 k& with continuity detection

Features

Slim, ergonomic design
CAT IV 300V/ CAT III 600 V safety rating
Hold button

Specifications
AC current Range 400.0 A
Accuracy 2 % ± 5 digits
( 45 Hz to 65 Hz)
2.5 % ± 5 digits
( 65 Hz to 400 Hz)
DC current Range -
Accuracy -
AC voltage Range 600.0 V
Accuracy 1.5 % ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0 % ± 5 digits
Resistance Range 400.0 & / 4000 &
Accuracy 1.0 % ± 5 digits
Continuity d 70 &
Capacitance -
Frequency -
AC response True-rms
Backlight -
Data hold Yes
Contact temperature -
Min/ Max -
Size H x W x D ( mm) 207 x 75 x 34
Max wire diameter 30 mm ( 600 MCM)
Weight 265 g
Category rating CAT III 600 V
CAT IV 300 V

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
